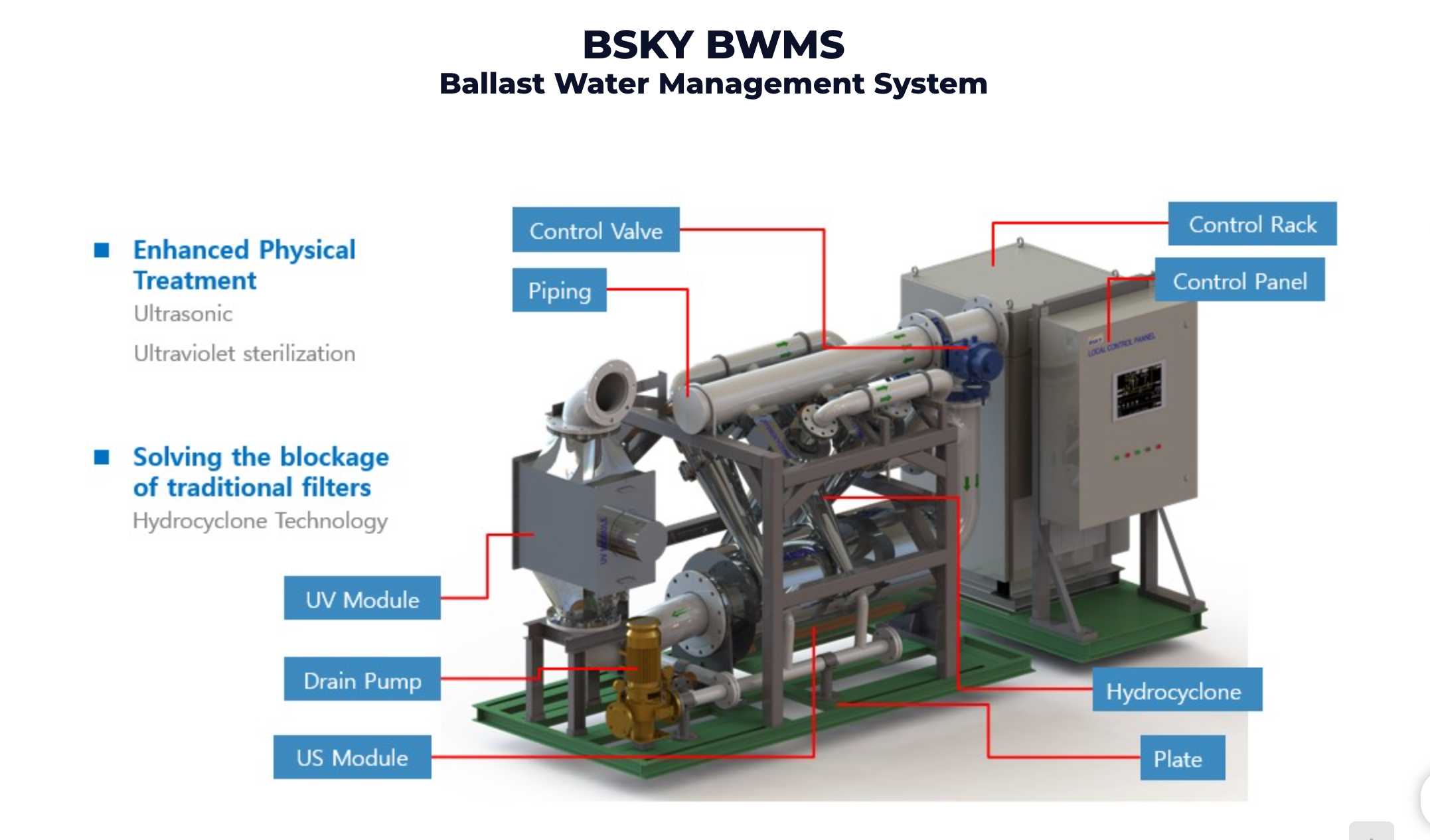

The UV lamp is the heart of the BSKY Ballast Water Management System’s disinfection function, and timely, correct replacement is essential to maintaining UV dose efficiency and compliance with IMO/USCG discharge standards. BSKY BWMS recommends replacing UV lamps and their matching quartz sleeves after 5000 operating hours or 3 years (whichever comes first). This guide provides a detailed, step-by-step operation manual for replacing BSKY BWMS UV lamps (compatible with BSML5523, BSML5520, BSML4520, and all BSKY UV modules), including critical precautions and supporting quartz sleeve replacement steps.

Pre-Replacement Preparation

Safety First: Cut off the main power supply of the BSKY control rack and UV module, and hang a "NO POWER ON" warning sign to avoid electric shock.

Tools & Parts: Prepare a set of wrenches, screwdrivers, new BSKY UV lamps (matching model), replacement quartz sleeves (if needed), new O-rings/sealing rings, cold press connectors, and the special quartz sleeve replacement tool from the BSKY spare parts box.

Clean Workspace: Clear the area around the UV reactor to ensure enough operating space; place a clean cloth on the ground to avoid contaminating the new UV lamp/quartz sleeve.

Key Precaution: Do NOT touch the UV lamp tube with bare hands—fingerprints or oil will cause local overheating and shorten lamp life. Use clean gloves or a dry cloth to handle the lamp at both ends only.

Step-by-Step UV Lamp Replacement (BSKY BWMS Standard Operation)

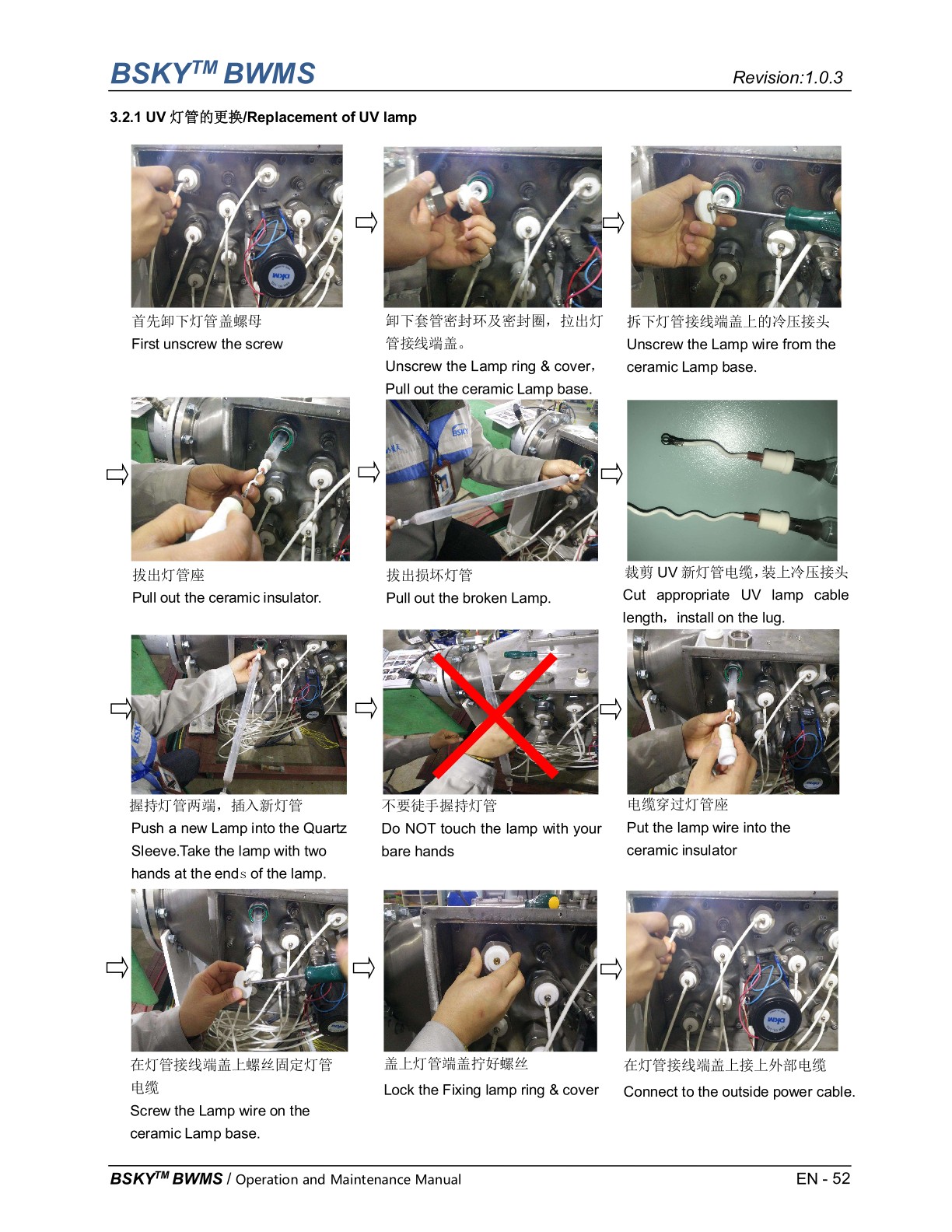

Step 1: Disassemble the UV lamp cover and ceramic base

Unscrew the lamp cover nut at both ends of the UV reactor using a wrench.

Remove the sleeve sealing ring and O-ring, then gently pull out the ceramic lamp base (wiring end cover) from the reactor end.

Unscrew the cold press connectors connecting the UV lamp wires to the ceramic lamp base, and label the wires to avoid wrong connection during reassembly.

Step 2: Remove the old UV lamp

Pull out the ceramic insulator (lamp holder) from the quartz sleeve carefully.

Grip the old UV lamp at both ends (with gloves) and pull it out of the quartz sleeve slowly—avoid scratching the quartz sleeve or breaking the lamp tube.

Inspect the quartz sleeve for cracks, scaling, or discoloration: if damaged or severely fouled, replace the quartz sleeve immediately (see Quartz Sleeve Replacement Steps below).

Step 3: Prepare and install the new UV lamp

Take the new BSKY UV lamp (BSML5523/BSML5520/BSML4520) and cut the lamp cable to the appropriate length according to the original wiring. Crimp new cold press connectors onto the cable ends to ensure a tight, secure connection (loose connectors will cause poor contact and lamp failure). Grip the new UV lamp at both ends (gloves on) and push it slowly and evenly into the quartz sleeve—do not twist or force the lamp to avoid breaking the quartz sleeve or lamp tube.

Thread the lamp cable through the ceramic insulator and reinsert the insulator into the quartz sleeve until it is fully seated.

Step 4: Reconnect wiring and reassemble the ceramic base

Screw the cold press connectors of the new lamp cable onto the corresponding terminals of the ceramic lamp base—ensure correct polarity (follow the labeled wires).

Reattach the ceramic lamp base to the UV reactor end, and install the new sealing ring and sleeve sealing ring to prevent water leakage (replace old O-rings if they are aged or cracked).

Tighten the lamp cover nut at both ends with a wrench—do not over-tighten to avoid damaging the ceramic base or quartz sleeve.

Step 5: Connect external power and initial check

Reconnect the external power cable to the ceramic lamp base of the UV reactor.

Restore the main power supply of the control rack, and switch the UV module to local mode to test the lamp: check if the lamp lights up normally, and verify the UV dose and output on the BSKY_CON color LCD touch screen.

If the lamp fails to light up, check the wiring connection, cold press connectors, and UV Power Supply—do not run the system with a faulty UV lamp.

Quartz Sleeve Replacement (Critical for UV Efficiency)

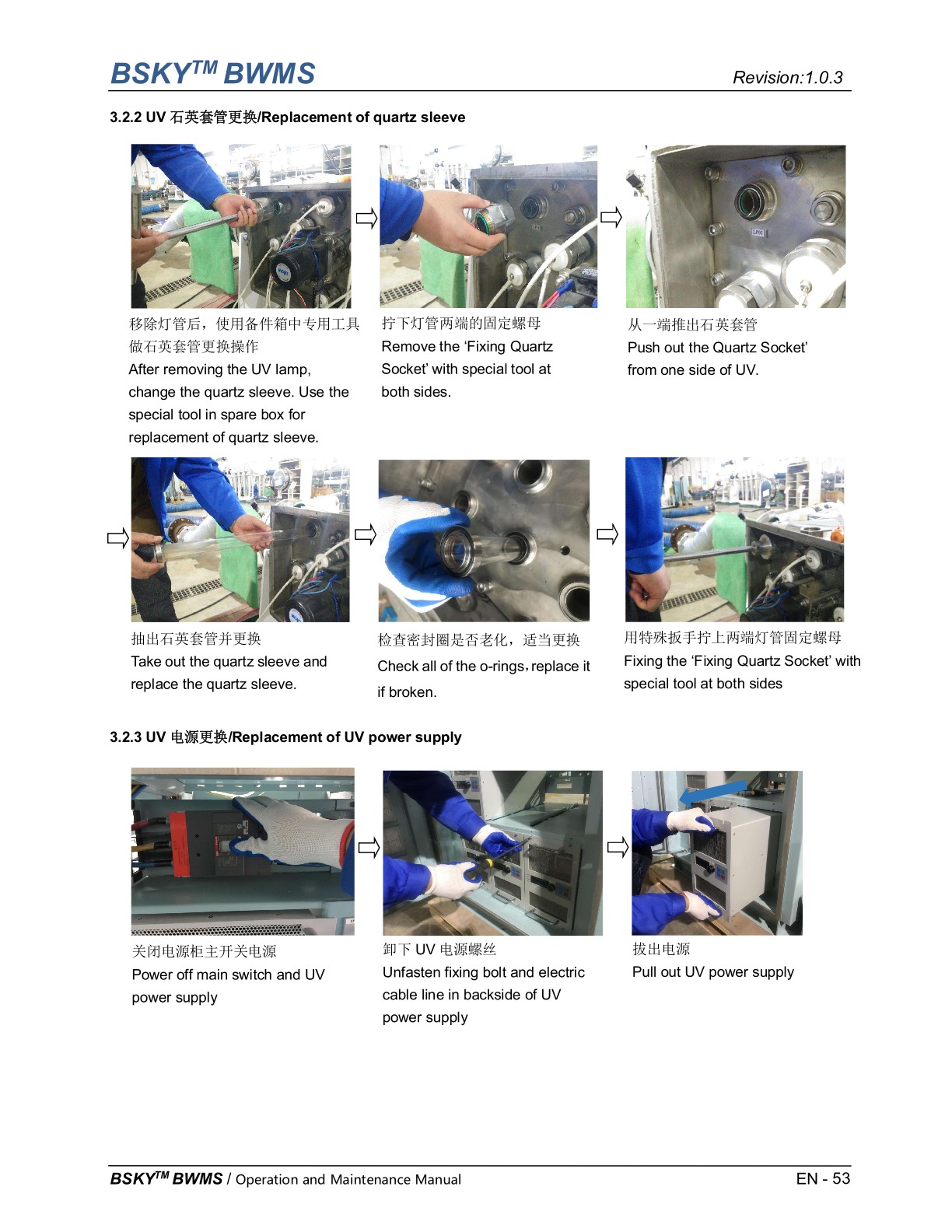

The quartz sleeve protects the UV lamp and ensures high UV transmittance; it must be replaced if cracked, scratched, or with low transmittance (≤60%). Perform this step after removing the old UV lamp:

Use the special quartz sleeve replacement tool from the BSKY spare parts box to unscrew the Fixing Quartz Socket nuts at both ends of the UV reactor.

Push the quartz sleeve out from one end of the reactor slowly—support the sleeve to avoid dropping and breaking it.

Clean the inner wall of the UV reactor with a dry cloth, and check the reactor’s stainless steel inner chamber for corrosion or scaling.

Insert the new quartz sleeve into the reactor (with gloves) and align it with the fixing sockets at both ends.

Use the special tool to tighten the Fixing Quartz Socket nuts at both ends, and replace all O-rings/sealing rings to ensure water tightness.

Reinstall the new UV lamp according to the steps above.

Post-Replacement Calibration & Verification

System Reset: On the BSKY_CON controller, reset the UV lamp operating time counter to zero to track the new lamp’s service life.

UV Dose Calibration: The BSKY UV module’s integrated sensor will automatically calibrate the UV dose, but verify the real-time UV output on the controller—ensure it meets the IMO New G8 standard (≥30 mJ/cm²).

Leakage Test: Run the ballast water system at low flow rate for 5-10 minutes, and check the UV reactor ends for water leakage—stop the system immediately if leakage is found and recheck the sealing rings.

Data Logging: Confirm the controller records the new lamp’s installation information, and save the replacement record in the ship’s maintenance log for classification society inspection.

Common Mistakes to Avoid

Bare Hand Contact: Never touch the UV lamp tube—use gloves or a dry cloth at all times.

Over-Tightening Nuts: Over-tightening the lamp cover or quartz socket nuts will crack the ceramic base or quartz sleeve.

Wrong Wiring: Misconnecting the lamp wires will cause the UV power supply to fail or the lamp to burn out—always label wires before disassembly.

Ignoring Sealing Rings: Reusing old, aged O-rings will lead to water leakage and UV module damage—replace all sealing rings during every lamp replacement.

Skipping Quartz Sleeve Inspection: A fouled or cracked quartz sleeve will reduce UV transmittance by 30%+—always inspect and replace if needed.
