220V Input 2000W High Power Regulating UV Ballasts for Water Treatment
220V Input 2000W High Power Regulating UV Ballasts for Water Treatment

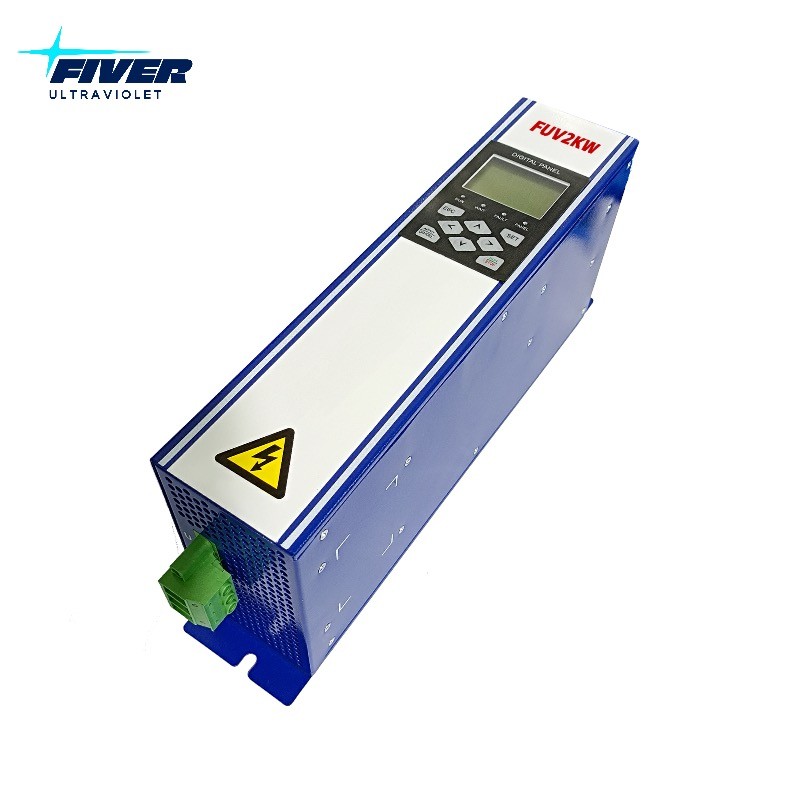

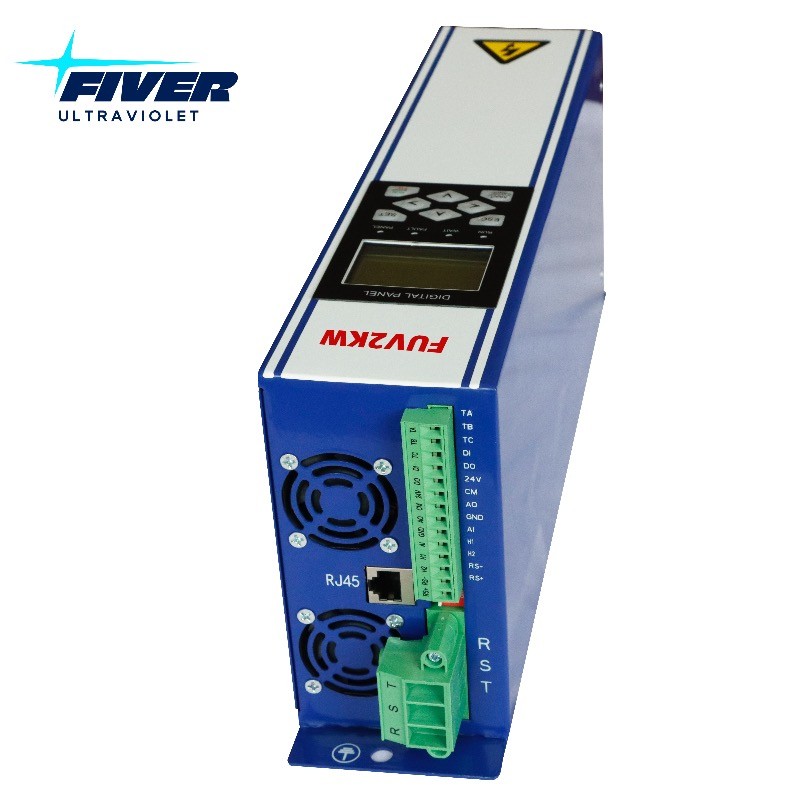

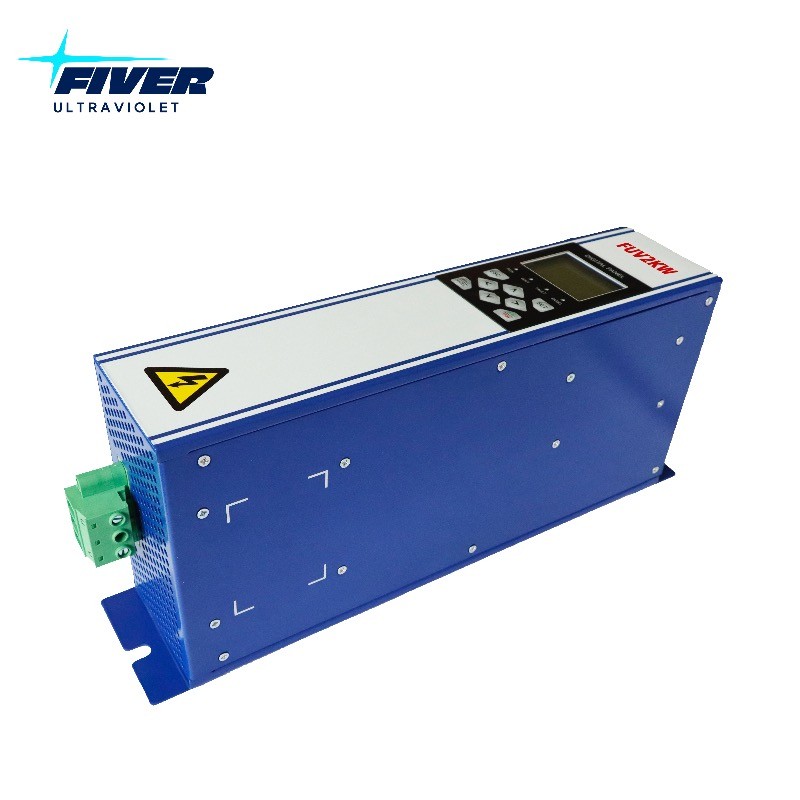

Parameters for 2KW Intelligent UV Ballast FUV2KW.
| Product Name | Intelligent uv ballast | Product brand | FIVER |
| Product Power | 2KW | Product model | FUV2KW |
| Input Voltage (V) | 220V ac | Max Output Current (A) | 12A |
| Input Current (A) | 9.1/5.2A | Recommend Lamp Voltage | 200V |
| Output Voltage Range (V) | 160-260A | Cooling Method | Air Cooling |
Product Features for Fiver's 2000W Medium Pressure UV Ballast
1. Intelligent identification. This high-power regulating uv ballasts, Intelligently matching the operating voltage and current of the lamp within the output range.
2. Safe Operation. The UV variable frequency power supply can receive external equipment fault signals, and when an external device malfunctions, it will immediately sound an alarm and stop operation.
3. Soft Switching Technology. This intelligent uv ballast with high-speed IGBT soft switching technology, smooth start-up, no impact current.
4. One Key Standby.Fiver's uv disinfection ballast with external terminal start-stop and one-key standby functions can reduce energy consumption and extend the lifespan of the uv tube.
5. Comprehensive Protections. Our medium pressure UV ballast with all-round protections. Such as temperature protection, overvoltage protection, overcurrent protection, short circuit protection, disconnection protection, and phase loss protection.
6. Communication interface. Fiver's ultraviolet light ballast, with standard RS485 communication interface, supporting Modbus RTU protocol.

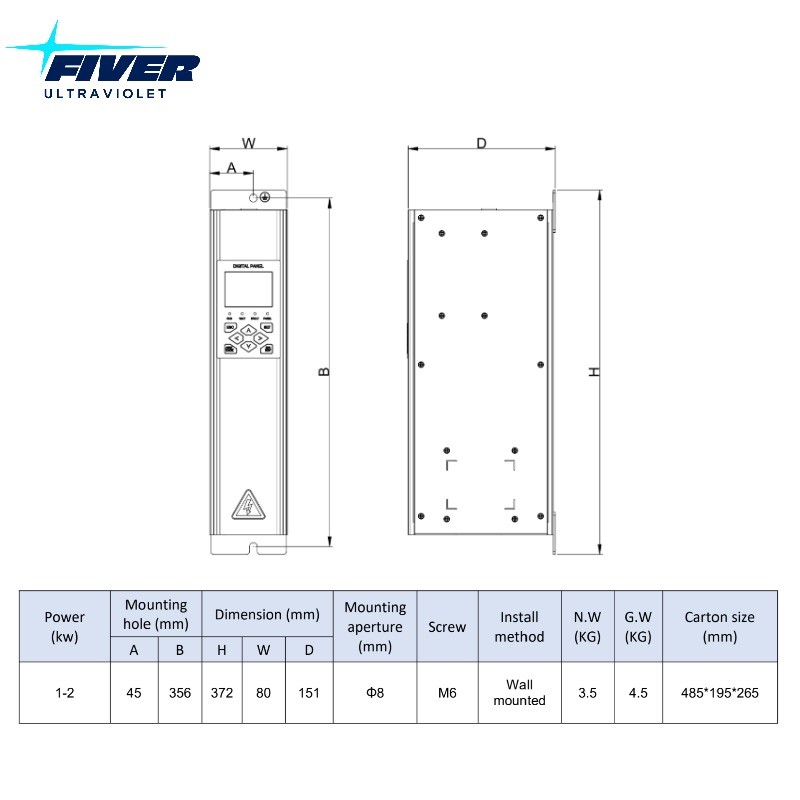

The Installation Dimension for this 2000W UV light ballast FUV2KW

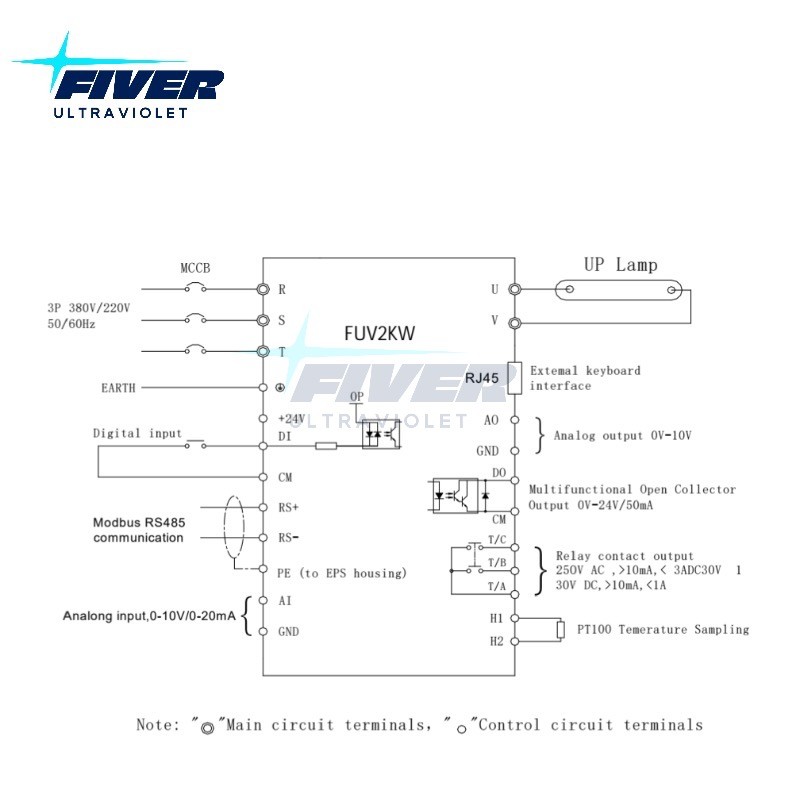

The Control Loop Wiring Diagram for this 2KW UV Ballast and Power Supply
The Applications for This 2000W Intelligent UV Ballast
