How can UV ballasts with advanced I/O and communication features be integrated into existing systems?

The Automation Engineer's Guide: Integrating Advanced I/O UV Ballasts into Existing Systems

elctronic-power (1).jpg


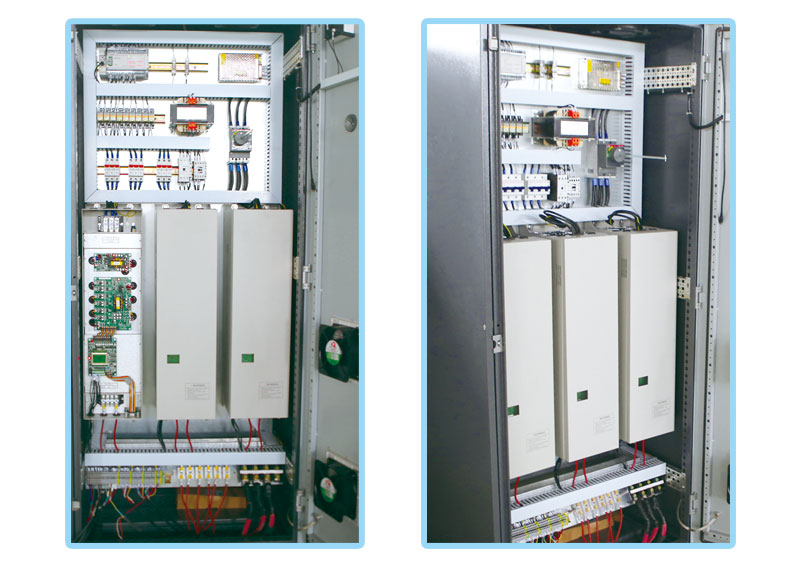

Introduction: Beyond Standalone Operation

For automation engineers and system integrators, the real value of an intelligent UV Lamp Power Supply isn't just in its ability to power a lamp—it's in its capacity to become a seamlessly integrated, data-rich node within a larger control ecosystem. Whether you're upgrading a water treatment SCADA system, automating an HVAC air purification unit, or optimizing a manufacturing curing line, successful integration hinges on a methodical, protocol-aware approach.

This guide provides a practical, step-by-step framework for connecting advanced UV ballasts with existing automation infrastructure, avoiding common pitfalls, and unlocking full operational potential.



Step 1: The Pre-Integration System Audit (The Foundation)

Before touching a wire, conduct a thorough audit of your existing system. This prevents costly mismatches and retrofits later.


ASSESSMENT FACTORWHAT TO CHECK (AS AN ENGINEER)WHY IT MATTERS
Communication ProtocolsIdentify the native language of your PLC, SCADA, or BAS.        Is it Modbus RTU/TCP, Profinet, Ethernet/IP, or BACnet? Most industrial UV ballasts default to Modbus RTU over RS485.A direct protocol match (e.g., SCADA using Modbus RTU) enables seamless integration. A mismatch (e.g., BAS using BACnet) requires a gateway.
I/O Port AvailabilityCheck your PLC's rack for unused Digital Input (DI), Digital Output (DO), Analog Input (AI), and Analog Output (AO) modules. Note voltage/current types (e.g., 24V DC, 4-20mA).Free ports are necessary to hardwire critical signals for control, feedback, and alarms.
Power CompatibilityVerify the voltage (e.g., 120V AC, 240V AC), phase (single/three-phase), and current capacity at the intended installation point.Mismatches here can damage the ballast or trip breakers, causing immediate failure.


Step 2: Bridging the Protocol Gap

Protocol mismatch is the most common hurdle. Don't force a square peg into a round hole; use a gateway.

  • Problem: Your building automation system (BAS) speaks BACnet, but the UV ballast only speaks Modbus RTU.

  • Solution: Deploy a Modbus-to-BACnet gateway. This device translates the ballast's data points (lamp status, power level, fault codes) into BACnet objects that the BAS can natively understand and control.

  • Other Common Gateways:

    • Modbus RTU to Profinet/Ethernet/IP: Essential for integrating into modern manufacturing PLC systems.

    • RS485 to Ethernet (Modbus TCP): Allows ballasts on a serial network to be accessible to any device on the plant LAN for centralized SCADA monitoring.


Step 3: Practical I/O Mapping & Wiring Best Practices

I/O mapping is where you define the conversation between the ballast and your controller. Here are two real-world examples:

Example 1: Water Treatment Plant with PLC/SCADA

UV BALLAST PORTFUNCTIONPLC CONNECTIONPURPOSE
DI1Start/Stop CommandPLC Digital Output (DO) CardPLC sends a 24V DC signal to start the ballast upon receiving a "flow proven" signal.
AI1Turbidity Sensor Input4-20mA Turbidity SensorSensor feeds water clarity data directly to the ballast for adaptive power adjustment.
AO1Real-time UV Power OutputPLC Analog Input (AI) CardBallast sends a 0-10V signal proportional to power, displayed on the SCADA dashboard.
DO1Lamp Fault AlarmPLC Digital Input (DI) CardTriggers a SCADA alarm and notification email to maintenance upon lamp failure.

Example 2: HVAC Air Purification with BAS

UV BALLAST PORTFUNCTIONBAS CONNECTIONPURPOSE
DI2Fan InterlockBAS Relay OutputSafety feature: Ballast only operates when the AHU fan is running, preventing ozone buildup.
RS485All Data PointsBAS via GatewayEnables remote control (setpoints, on/off) and monitors lamp hours, intensity, and internal temperature.



Wiring Best Practices for Reliability:

RS485 Networks: Use daisy-chain topology with shielded twisted-pair cable (e.g., Belden 9841). Terminate the first and last device in the chain with a 120Ω resistor to prevent signal reflection.

Separation of Powers: Run high-voltage AC power cables and low-voltage signal cables (I/O, RS485) in separate conduits to prevent electromagnetic interference (EMI).

Proper Grounding: Connect the ballast's ground terminal to the system's earth ground. This is non-negotiable for safety and noise reduction.


Step 4: Configuration and End-to-End Testing

1. Configure the Ballast:

Use the onboard keypad or configuration software to set:

Modbus Parameters: Baud rate, parity, stop bits—must match the host system settings.

Modbus Address: Assign a unique address to each ballast on the network.

I/O Functionality: Define each port (e.g., set DI1 to "Latch" for run/stop).

2. Test Methodically:

Control Test: From the SCADA/BAS, issue a start command. Verify the ballast starts and the UV lamp ignites.

Feedback Test: Check that real-time data (from AO ports and Modbus) appears correctly on the HMI/SCADA screens.

Alarm Test: Simulate a fault (e.g., disconnect a lamp). Confirm the DO alarm triggers and the SCADA/BAS generates the correct priority alarm.


Key Compatibility Pitfalls & How to Solve Them

1>Signal Type Mismatch:

Problem: Your PLC's analog card outputs 0-10V, but the ballast's analog input requires 4-20mA.

Solution: Install a inexpensive signal converter between the devices.

2>Environmental Rating:

Problem: A standard ballast installed in a humid wastewater pit fails due to condensation.

Solution: Select a ballast with a suitable IP (Ingress Protection) rating (e.g., IP65) for the environment.

3>Firmware Issues:

Problem: The ballast doesn't respond to a specific Modbus function code expected by your new PLC.

Solution: Check for firmware updates from the ballast manufacturer that add protocol features.


Conclusion: Unlocking the Full Value of Integration

Integrating an intelligent UV ballast is a technical process that pays massive dividends. When done correctly, it transforms a standalone component into a vital part of an automated, efficient, and data-driven operation. You achieve:

  • Hands-Free Automation: Systems activate and adjust based on process demands (flow, turbidity, conveyor speed).

  • Centralized Visibility: Monitor and manage an entire bank of UV systems from a single dashboard.

  • Predictive Maintenance: Receive automated alerts for lamp replacements and performance degradation before they cause downtime.

By following this protocol-aligned, audit-first approach, you can ensure a robust and successful integration that maximizes ROI and system intelligence.


If you need more infomation or need help with integrating our smart EPS for medium pressure uv lamps with your system, please feel free to contact us
