If you’re a marine engineer or fleet manager, you know that maintaining your Alfa Laval PureBallast ballast water treatment system (BWTS) is critical for IMO D-2 compliance, avoiding costly port detentions, and keeping your fleet running smoothly. The UV lamps and quartz sleeves are the workhorses of the system’s disinfection process, and proper replacement is key to reliable performance.
In this step-by-step guide, we’ll walk you through the process of replacing both components safely and correctly, based on the official service manual. We’ll also highlight how using OEM-equivalent replacements from Fiver Ultraviolet can ensure compatibility, durability, and long-term savings.
Safety First: Critical Pre-Replacement Precautions
Before starting any work on the UV reactor, these safety steps are non-negotiable:
Power Isolation: Always disconnect the PureBallast system from the power supply and secure it to prevent accidental reactivation.
Lock Valves: Close and lock the valves (V201-9, V201-3, V201-8) that control flow to the UV reactor to prevent flooding during service.
Cool-Down Period: Allow the UV reactor to cool for at least 10 minutes after completing ballast/deballast operations. Hot lamps are under high internal pressure and can burst if disturbed.
Mercury Handling: UV lamps contain mercury. Handle broken lamps with extreme care, use a syringe or sulfur powder to contain spills, and dispose of waste according to local regulations.
Personal Protective Equipment (PPE): Wear safety glasses and clean cotton gloves to protect yourself from broken glass and prevent contamination of the lamp surface.

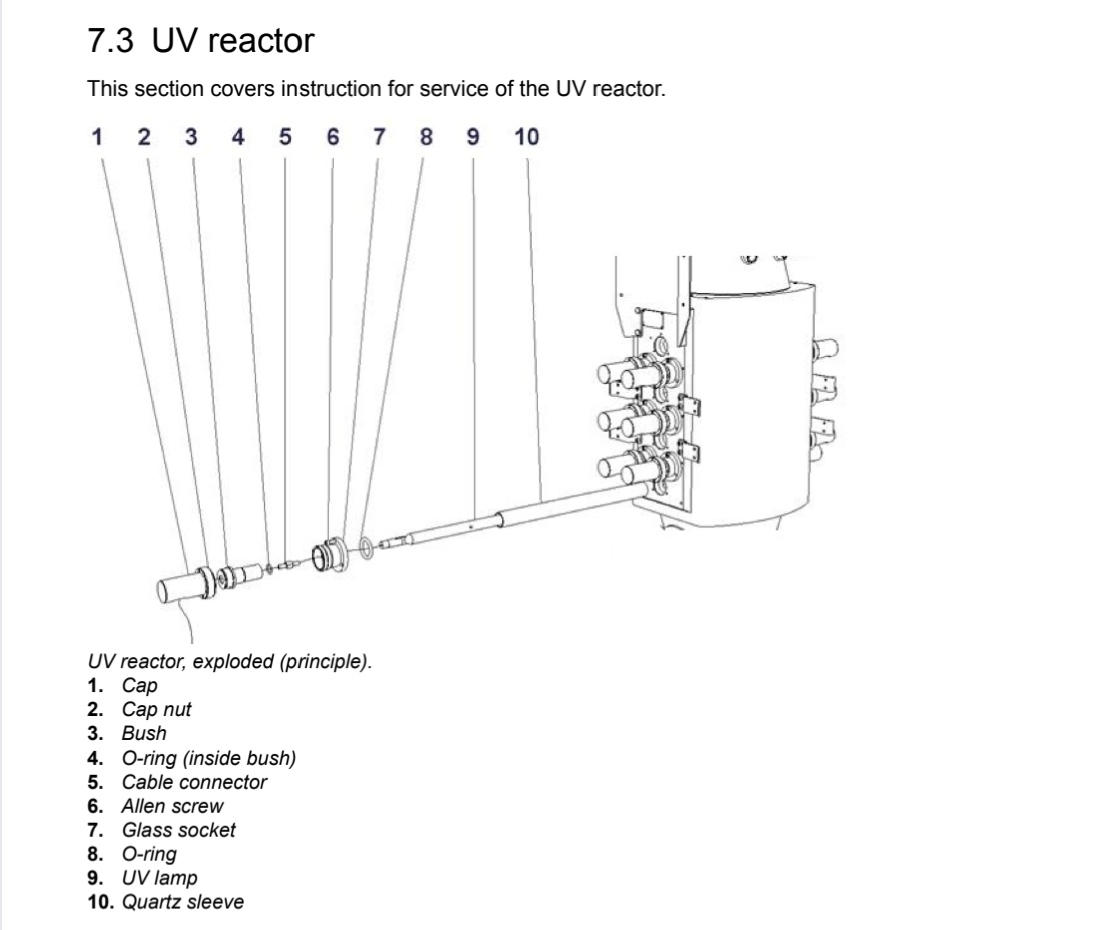

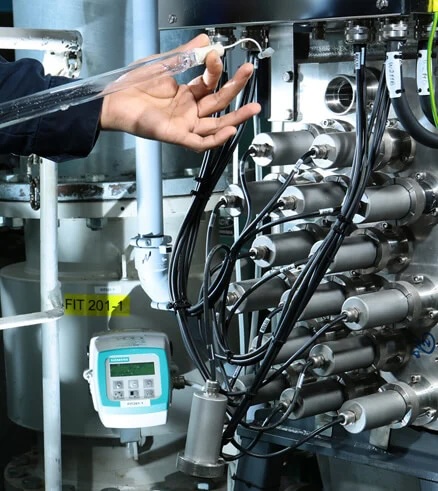

Part 1: Replacing the UV Lamp
Follow these steps to remove the old one and install a new UV lamp replacement in your Alfa Laval PureBallast system.
Step 1: Disassemble the Old Lamp
Remove the Cap and Cap Nut: Unscrew the cap nut holding the lamp cap, then remove the cap from the reactor.
Disconnect the Cable: Unplug the electrical connector attached to the UV lamp.
Repeat on the Opposite Side: Perform the same cap removal and disconnection steps on the other end of the UV reactor.
Extract the Lamp: Carefully pull the UV lamp straight out, holding it only by the ceramic ends (never touch the glass surface). If stuck, use a screwdriver to gently press the ceramic end through the lamp bush while pulling the cable from the other side.
Inspect the Quartz Sleeve: Check the quartz sleeve for cracks, discoloration, or water leaks. If it’s damaged, follow the steps in Part 2 to replace it.

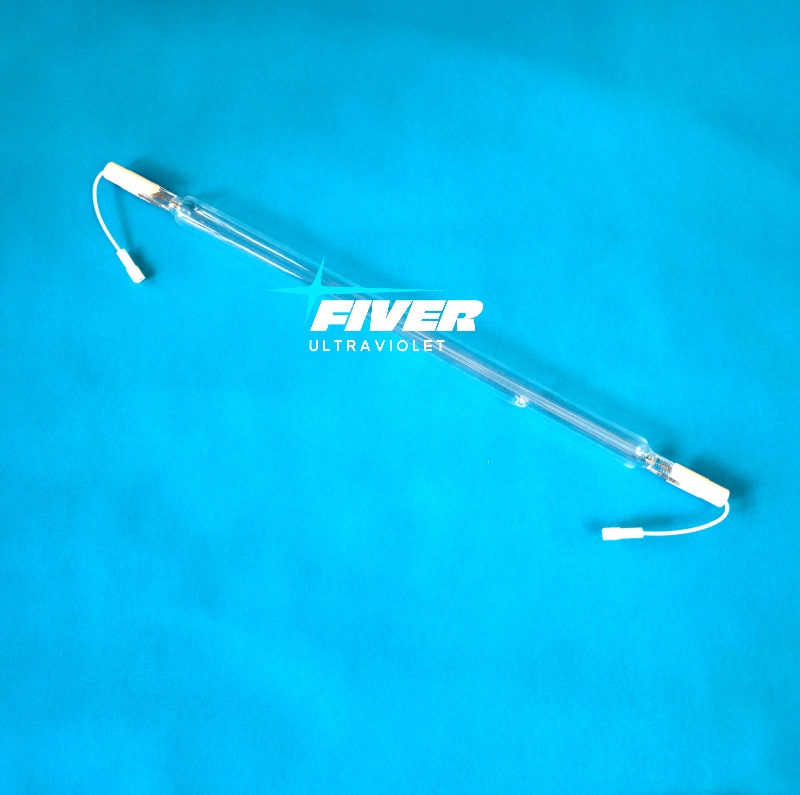

Step 2: Install the New UV Lamp
Prep the New Lamp: Keep the new lamp in its protective cover until ready to install. Use the cleaning wipes provided to gently clean the glass surface if needed.
Prepare the Lamp Bush: Inspect the O-rings inside the lamp bush. Replace them with new heat-resistant O-rings if they are cracked or worn.
Insert the Lamp: Slide the lamp bush onto the new lamp, then carefully insert the lamp and bush into the reactor. Be extremely careful to avoid hitting the quartz sleeve, as this can break the lamp.
Secure the Opposite End: Insert the other lamp bush into the glass socket on the far side of the reactor.
Reconnect the Cable: Plug the electrical connector back in, ensuring it is secure.
Tighten the Cap: Hand-tighten the lamp cap and cap nut. Make sure the cable is not pinched between the cap and the bush.
Final Checks: Repeat the process on the other side of the reactor. Once both ends are secure, power on the system and check the alarm list for any errors.
Pro Tip: The official manual recommends replacing all UV lamps after 3000 hours of operation. Using high-quality, OEM-equivalent lamps from Fiver Ultraviolet ensures you get the same performance as the original parts, with same service life and stable UV output for consistent disinfection.
Part 2: Replacing the Quartz Sleeve
The quartz sleeve protects the UV lamp from water and maintains the high UV transmittance (UVT) needed for effective disinfection. Replace it if it’s cracked, scratched, or showing signs of fouling.
Step 1: Disassemble the Old Sleeve
Prep the System: Lock the relevant valves, drain the UV reactor, and disconnect the instrument air supply. Remove the UV lamp as described in Part 1.
Loosen the Glass Sockets: On both sides of the reactor, loosen the three screws holding the glass sockets in place.
Remove the O-Rings: Lubricate the O-rings around the sleeve with soapy water, then use an O-ring tool to carefully pry them out. They are designed to be replaced during reassembly.
Extract the Sleeve: Gently pull the old quartz sleeve straight out of the reactor.
Clean the Area: Use a soft cloth to clean the surface between the reactor and the glass socket, removing any debris or residue.
Step 2: Install the New Sleeve
Lubricate the O-Rings: Install new O-rings on both ends of the new quartz sleeve, lubricated with soapy water (never use Vaseline or oil).
Insert the Sleeve: Carefully slide the new sleeve into the reactor, centering it evenly.
Secure the Glass Sockets: Attach the glass sockets to both ends and hand-tighten the screws. Once evenly seated, torque the screws to 7 Nm in a cross-tightening pattern.
Leak Test: Pressurize the UV reactor with water to 2–4 bar and visually inspect for leaks. If none are found, proceed to reinstall the UV lamp.

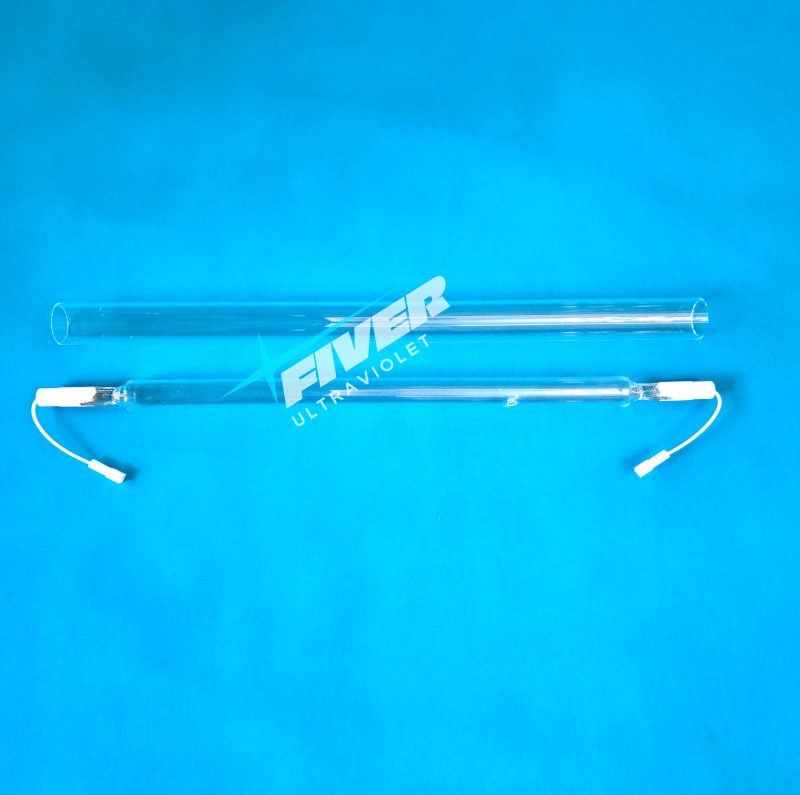

Why Choose Fiver Ultraviolet for Your Alfa Laval BWTS Replacements?
Using the right replacement parts is crucial to maintaining your system’s performance and compliance. At Fiver Ultraviolet, we specialize in manufacturing OEM-equivalent UV lamps and quartz sleeves for Alfa Laval PureBallast systems.
When you choose Fiver, you get:
100% Compatibility: Our lamps and sleeves are precision-engineered to match your system’s exact specifications, ensuring a perfect fit and plug-and-play installation.
Reliable Performance: Our medium-pressure UV lamps deliver stable, consistent UV output to meet IMO D-2 & USCG standards, even in challenging water conditions.
Durability: Marine-grade materials and rigorous testing ensure our parts can withstand the harsh conditions of the marine environment, from vibration to temperature swings.
Cost Savings: Get the same quality as Genuine parts without the premium price tag, reducing your total cost of ownership.
Explore our full range of Alfa Laval-compatible replacement parts here: https://www.fiveruvc.com/ALFA-LAVAL.html
Frequently Asked Questions (FAQ)
Q: How often should I replace the UV lamps in my Alfa Laval BWTS?
A: Most Alfa Laval systems recommend UV lamp replacement every 3,000 hours, or approximately every years for vessels operating continuously. However, actual lifespan depends on power cycles and water quality.
Q: Can I replace just the lamps without changing the quartz sleeves?
A: While technically possible, we recommend replacing both simultaneously if the sleeves show any signs of fouling, scaling, or age-related wear. Old sleeves can drag down performance even with new lamps.
Q: Are aftermarket UV lamps compatible with my Alfa Laval system?
A: Yes, our replacement UV lamps and quartz sleeves are designed to match Alfa Laval specifications exactly. We offer products compatible with all major Alfa Laval BWTS models.
Q: What happens if I don't replace failed UV lamps?
A: Operating with degraded UV lamps means your system may not achieve the required UV dose to meet IMO D-2 standards. This could result in failed port state inspections, fines, or detention.
Q: How do I know if my quartz sleeve needs replacement?
A: Inspect for visible scaling, cloudiness, cracks, or discoloration. If the UV sensor shows low intensity despite new lamps, the sleeves are likely the culprit.
Q: What's the lead time for replacement parts?
A: We maintain inventory for most common Alfa Laval configurations and can ship within 24-48 hours. For specialized models, lead times may vary.
Q: Do you provide technical support for installation?
A: Absolutely. Our team includes marine engineers with direct experience in BWTS installation and maintenance. We're available to answer questions before, during, and after your replacement project.
Q: Are your products certified?
A: Our UV lamps meet or exceed OEM specifications for UV-C output at 254nm. Our quartz sleeves are manufactured from high-purity fused quartz with excellent UV transmission properties.
Q: What's the warranty on replacement parts?
A: We provide a standard 12-month warranty on all UV lamps and quartz sleeves, covering manufacturing defects.
Q: How much can I save by choosing aftermarket parts?
A: Typically, aftermarket UV lamps cost at lest 50% less than OEM equivalents. For a full system replacement including lamps and sleeves, the savings can be substantial—especially for vessels with multiple UV reactors.
Q: What if we receive damaged parts or have installation issues?
A: Document with photos and contact us immediately. We typically resolve issues within 4 hours during business hours. we offer technical support, if you have installation issues, please contact us for help.
Q: How should we dispose of the old UV lamps?
A: Mercury-containing lamps require proper disposal. We provide guidance on certified disposal facilities in major ports. Some clients use take-back programs where we coordinate disposal with new deliveries.
Q: Will using compatible lamps void my Alfa Laval warranty?
A: No. Under international warranty law (Magnuson-Moss Warranty Act principles apply globally), using quality-compatible parts cannot void your system warranty unless the part itself causes damage.
Final Thoughts
Regular maintenance of your Alfa Laval PureBallast BWTS is the key to smooth operations and regulatory compliance. By following these steps to replace your UV lamps and quartz sleeves, you can avoid unexpected downtime and costly repairs.
Ready to upgrade your maintenance routine? Browse our selection of high-quality replacements or contact our team for expert advice on finding the right parts for your system.
