Stainless Steel Pump Feed Rotary Drum Filter for Koi Pond 1350GPH

Model: FR-DF-D60
Flow Rate: 5-20T/H 13 (1321-5284GPH)
Size: 800-400-50mm
Drum Size: 350mm(Diameter)*300mm(Height)
Housing Material: 304 Stainless Steel
Filtration Screen Material: 316 Stainless Steel
Screen Aperture: 100/75um
Inlet Size: DE40/DN32 -32mm
Outlet Size: DE75/DN65-70mm
Sewage Outlet: DE50/DN40-40mm
Suitable Water: 0-10m³
Feed Pump: Variable Frequency Pump: 15-50W
UV Lamps: 20W*2

Product Details

Product Tags

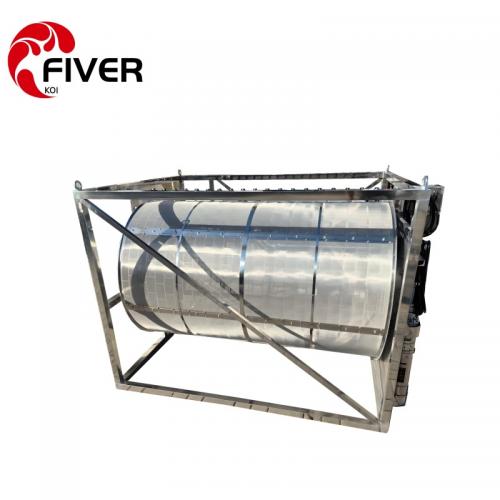

Stainless Steel Pump Feed Rotary Drum Filter for Koi Pond 1350GPH

Stainless Steel Pump Feed Rotary Drum Filter for Koi Pond 5000GPH.jpg

Product Diameter for Fiver's Drum Filter for Koi Pond


Product Diameter for Fiver's Drum Filter for Koi Pond.png


Product Features for This 5T/H Pump Feed  Koi Pond Drum Filter

Product Features for This 5T/H Pump Feed  Koi Pond Drum Filter.jpg

1> Long Life Span. 1.5mm thick 304 chamber contructure and 316L filtration screen make the filter extremly strong, durable and corrosion resistance. with a life span up to 20 years.

2> Excellent filtration capability. This 5T/H combi rotary drum filter with a 100um diameter 350mm Length 300mm filtration drum. can effectively remove solid waste and debris from the water.

3> Fully Automatic Operation. with a atuomatic controller, the drum water filter can flush and sewage automaticly. carefree operation. no need to clean the filtration media offen as the traditonal filter system.

4> Flexibility. Compares to gravity feed drum filters, this pump feed drum filter are easier to install and operate pump can be conveniently connected to the filter and pond, eliminating the need for complex plumbing arrangements. This makes pump feed Combi Drum Filters a flexible practical and user-friendly option for pond owners, what's more it can also be used for existing ponds without settling pond.

5> Easy Installation and Less Space required. this pump feed pond drum filter are easy to install requires less space for installation. can be used indoor and outdoor.

6> Comprehensive Solution for Maintaining Water Quality. This Combi Drum Filter for fish pond provides both mechanical and biological filtration in one unit. the filtration screen remove solid waste and debris from the water, uv lamps effectively killing harmful bacteria, algae, and other pathogens in the water while also promoting the biochemical filtration media helps the growth of beneficial bacteria that can break down harmful substances. can help reduce algae growth, improve water clarity, and enhance overall pond ecosystem balance.

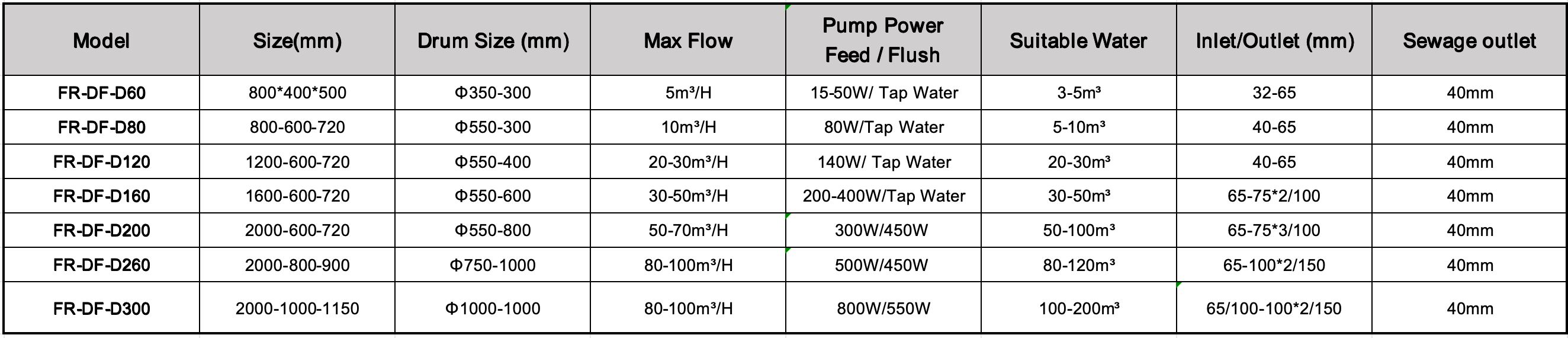

Dimension for Pump Feed Drum Filter FR-DF-D60

Dimension for Pump Feed Drum Filter FR-DF-D60.jpg


What are some key features to look for when selecting a Combi Drum Filter for a fish pond?

When selecting a Combi Drum Filter for a fish pond, there are several key features to consider. First, it is important to look for a filter that is appropriately sized for the volume of water in your pond. The flow rate of the filter should match the water circulation needs of your pond to ensure effective filtration. Additionally, consider the quality of the materials used in the construction of the filter. Look for a durable and corrosion-resistant design that can withstand the outdoor elements and provide long-lasting performance.

Another important feature to consider is the ease of maintenance and cleaning. Choose a Combi Drum Filter that is user-friendly and easy to access for routine maintenance tasks such as cleaning the filter media or replacing parts. Some filters may have features like automatic backwashing or self-cleaning mechanisms that can help simplify the maintenance process.

Furthermore, consider the versatility of the Combi Drum Filter in terms of customization options. Look for a filter that allows you to adjust the filtration settings or incorporate additional filter media to meet the specific needs of your fish pond. Having the flexibility to tailor the filtration system to your pond's requirements can help optimize water quality and promote a healthy aquatic environment.
