110V-240V 2.1A 200W Amalgam UV Lamp Ballast

High Power Factor: >98%
110/230V Worldwide universal voltage
Status indication via 5V DC signal output indicator.
Preheat Start Switching Cycles up to 50000 times.

Load Lamps:
1*Lamp Type: GPHA843T5
2*Lamp Type: GPHA357T5

Product Details

Product Tags

110V-240V 2.1A 200W Amalgam UV Lamp Ballast

110V-240V 2.1A 200W Amalgam UV Lamp Ballast

Product Parameters for this 200W Amalgam Germicidal UV Lamp Ballast

        Start Mode       Pre-heat Start

Operating Voltage Range

99-264

Max Input Power

217W

Max Input Current

0.96A @ 230V , 1.92@110V

Lamp Power

200W Amalgam UV Lamp

Lamp Current

2.0-2.2A

Operating Frequency

40-70KHZ

Preheat Time

14-15 S

Preheat Current

2.7-2.9A

Power Factor

≥ 0.98

 Efficiency

 >90%

Total Harmonic Distortion

<15%

Crest Factor

<1.7

Ambient Humidity

5%-85%

Ambient Temperature

-15-40℃

Max Case Temperature

70℃

Case Material

Aluminum Shell

Safety Norm

EN61347-1-2-3, EN62493

LVD Norm

Low voltage Directive 2014/35/EU

 EMC Norm

EN55015, EN55014, GB17743, GB17625, EN61000-3-2

 Certificates

CE/UL/CCC


Product Features for ballast for amalgam uv light

1> This 200W amalgam uv lamp ballast, is with high power factor. energy efficient. money saving

2> This amalgam germicidal uv lamp ballast is with worldwide universal voltage, can work with 110V and 230V input.

3> This  uv lamp ballast with reliable quality, less than 0.3% repair rate,within warranty.

4> We offer OEM and ODM service for this uv-c lamp ballast .

Dimension for this Amalgam UV Lamp Ballast

2.1A 200W Amalgam UV Light Ballast PH8-2100-200 Dimension

Size: 250*65*40mm  Carton Size: 460*270*190mm(18PCS load)

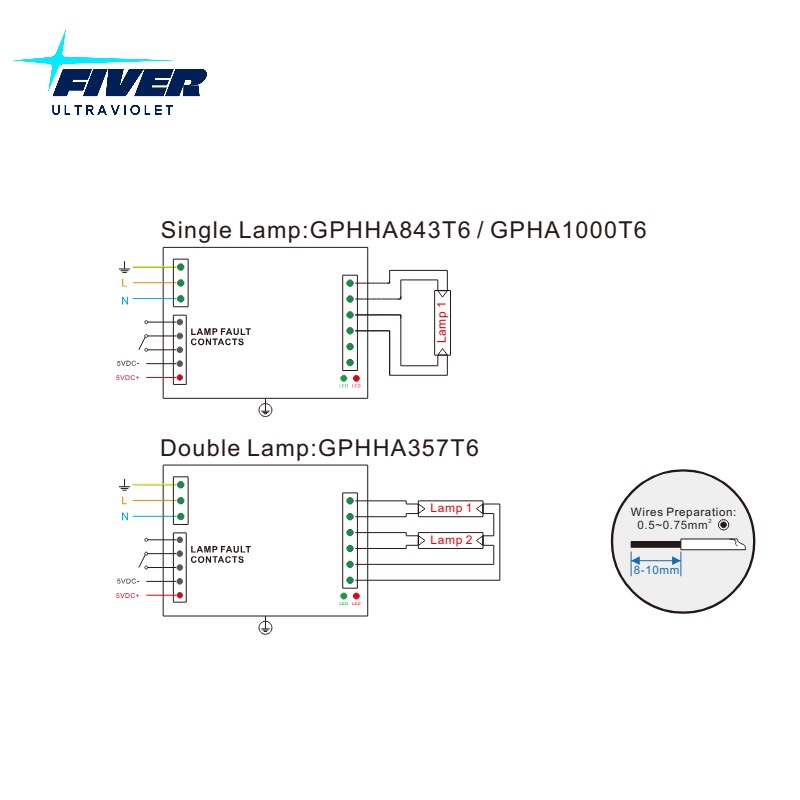

Wiring Diagram for this ballast for amalgam uv lightWiring Diagram for 200W Amaglgam UV Lamp Ballast PH8-2100-200

Wiring diagram A 1 Lamp: GPHHA843T6, GPHA1000T6

Wiring Diagram B 2 Lamps: GPHA357T6



Cautions:


1. Please make sure the power is off when you install or maintain the ballast

2. The distance between ballast and lamp tube should no longer than 5M.

3. The suggested wire specific: diameter 0.5-1mm, wire stripping 0.8-1mm

4. The aluminum shell should be grounded.
