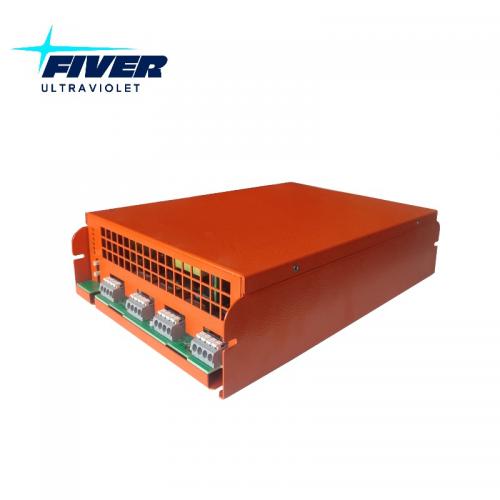

Wide Voltage Input 28KW UV Curing Power Supply for Metal Halide Lamps
Wide Voltage Input 28KW UV Curing Power Supply for Metal Halide Lamps
Brief Parameters for the 28KW UV Light Choke
| Product Name | Intelligent uv ballast | Product brand | FIVER |
| Product Power | 28KW | Product model | FUV28KW |
| Input Voltage (V) | 360-480V ac | Max Output Current (A) | 12.5A |
| Input Current (A) | 42.5A | Recommend Lamp Voltage | 2750V |
| Output Voltage Range (V) | 2600-2850 | Cooling Method | Air Cooling |
( For more details please check the datasheet in PDF attachment)
Product Featueres for this Electronic UV Transformer
1. Wide voltage adaptability, Fiver's 28KW uv curing power supply can operate normally with input voltage of 360V-480V.Different regions and countries may have varying voltage standards. A device with wide voltage adaptability can be used in multiple locations without the need for additional voltage converters or adapters. what's more it can withstand these fluctuations and operate reliably under different voltage conditions. Eliminating the need for additional voltage converters or adapters can save costs for users and reduce the complexity of the setup process.
2. Fast dynamic response speed, Our uv power inverter only takes 500ms from standby to full power output. Devices with fast dynamic response speed can improve user experience by delivering quick and responsive feedback. This can be particularly important for uv curing systems. Fast dynamic response speed helps maintain system stability by minimizing delays in responding to changes. This is crucial in applications where stability is critical, such as in power electronics or control systems. Faster response times can also contribute to energy efficiency by optimizing the performance of the device and reducing unnecessary energy consumption.
3. Stepless Dimming. Fiver's electronic uv transformer can Infinitely adjustable output power from 10% to 100% with smooth dimming, and the standby power can operate stably for a long period.
4. Independent air duct design, Our ballast for uv curing effectively isolating components and pollutants, ensuring the power supply can operate in harsh environments for a long period.
5. Excellent heat dissipation. This 28KW ballast for uv curing, Integrated variable frequency fan control function, intelligently controlling the ventilation. stable output.
6. Multipal Communication Interface. Standard RS485 communication interface, supporting Modbus RTU protocol.and expansion for CANopen and Ethernet communication.
Applications for This Fast Dynamic Response UV Ballast and Power Supplies.
How Does the Precise Control of Intelligent UV Variable Frequency Power Supply Contribute to the Reliability and Consistency of UV Processes?
The precise control offered by an intelligent UV variable frequency power supply plays a crucial role in enhancing the reliability and consistency of UV processes. By allowing for accurate adjustment of the UV output intensity, the power supply ensures that the UV radiation levels are maintained at the desired levels for optimal performance. This precise control helps to achieve consistent results in UV applications, such as curing, disinfection, and printing, by ensuring that the UV exposure is uniform and effective across the entire surface or area being treated. Additionally, the ability to fine-tune the UV output helps to minimize the risk of underexposure or overexposure, leading to more reliable and repeatable outcomes in UV processes.
