UL Listed 120V 18W Pre-Heat Germicidal UV Lamp Ballast for Air Disinfection
UL Certified 120V 18W Pre-Heat Germicidal UV Lamp Ballast
Product Parameters:
Operating Voltage Range | 99-132 |
| Max Input Power | 21.5W |
| Max Input Current | 0.33A @ 120V |
| Lamp Power | 10-18W |
| Lamp Current | 0.35-0.42A |
| Operating Frequency | 50-70KHZ |
| Preheat Time | 0.6-1.0 S |
| Preheat Current | 0.48-0.6A |
| Power Factor | ≥ 0.55 |
| Efficiency | >80% |
| Total Harmonic Distortion | <15% |
| Crest Factor | <1.7 |
| Ambient Humidity | 5%-85% |
| Ambient Temperature | -15-40℃ |
| Max Case Temperature | 70℃ |
| Case Material | Thermal Plastic |
| Safety Norm | EN61347-1-2-3, EN62493 |
| LVD Norm | Low voltage Directive 2014/35/EU |
| EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
| Certificates | UL |
Advantages of the Electronic Germicidal UV Lamp Ballas
1> One of the advantages of Electronic UV Ballasts is energy efficiency. By using electronic circuitry to control power, these ballasts minimize energy waste and reduce operating costs.
2> Electronic germicidal UV lamp ballasts are known for their compact size and lightweight design, which makes them easier to install and integrate into UV systems.
3> Their ability to precisely control the output of UV lamps also aids in more effective disinfection, ensuring harmful microorganisms are effectively targeted and neutralized.
4> Electronic UV ballasts increase lamp life and reliability. Precise adjustment of power helps extend the service life of UV lamps and reduces the frequency of replacement and maintenance. This not only saves costs but also ensures consistent performance over an extended period of time.
5> Electronic ballasts for uv lamps are less prone to flickering or buzzing than traditional magnetic ballasts, providing quieter, more stable operation.
Compatible Lamp Type:
This UL listed 120V input 18W Pre-Heat Germicidal UV Lamp Ballast is compatible with following T5 low voltage germicidal uv lamps: GPH150T5, GPH212T5,GPH217T5, GPH303T5, TUV11W, TUV16W. suitable for applications such as water treatment, air disinfection surface disinfections.

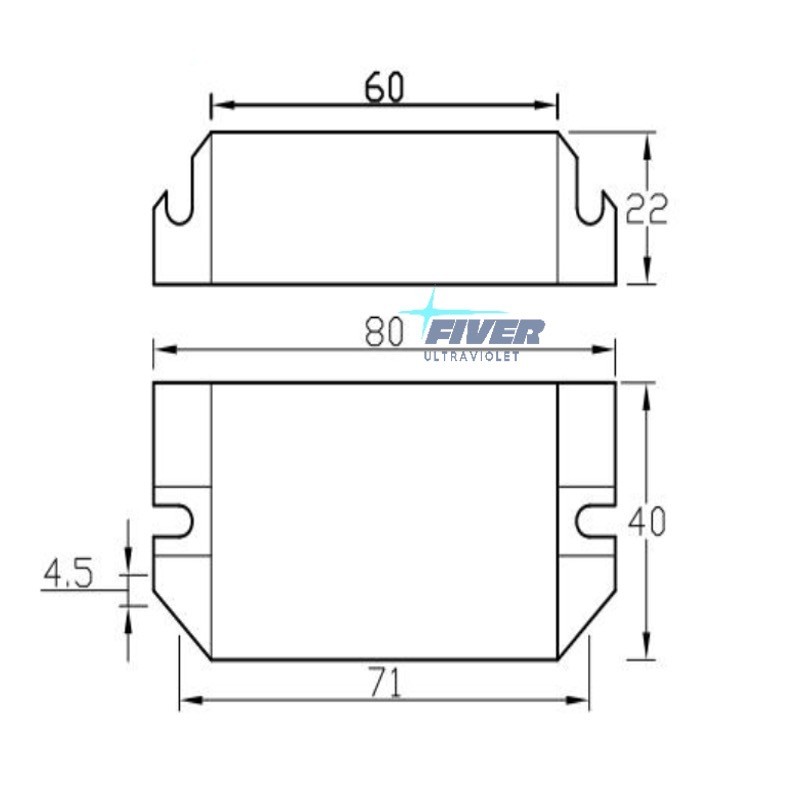

Dimension
Size: 80*40*22mm Carton Size: 460*280*140mm (100PCS load)
Wiring Diagram
Cautions:
1. Please make sure the power is off when you install or maintain the ballast
2. The distance between ballast and lamp tube should no longer than 5M.
3. The suggested wire specific: diameter 0.5-1mm, wire stripping 0.8-1mm
