230V Input 100 Watt High Power Ballast for UV Lights
230V Input 100 Watt High Power Ballast for UV Lights
Product Parameters for 100 watt uv ballast
Operating Voltage Range | 198-264 |
Max Input Power | 105W |
Max Input Current | 0.8A @ 230V |
Lamp Power | 100W UV Lamp |
Lamp Current | 0.75-0.85A |
Operating Frequency | 40-70KHZ |
Preheat Time | 1.0-2.0 S |
Preheat Current | 0.7-0.9A |
Power Factor | ≥ 0.98 |
Efficiency | >90% |
Total Harmonic Distortion | <15% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
LVD Norm | Low voltage Directive 2014/35/EU |
EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
Certificates | CE/UL/CCC |
Product Features for high power uv ballast
1> This high power electronic ultraviolet ballast, is energy efficient. which saves the user money by minimizing energy waste.
2> Compact size and weight: electronic ballasts are smaller and lighter than magnetic ballasts.
3> Continuous power adjustment: This 100 watt uv ballast can continuously adjust power at different settings.
4> Quieter operation: Electronic ballasts are quieter than magnetic ballasts.
5> More stable operation: Electronic ballasts provide more stable operation.
6> Longer service life: Electronic ballast for uv light provide a longer service life.

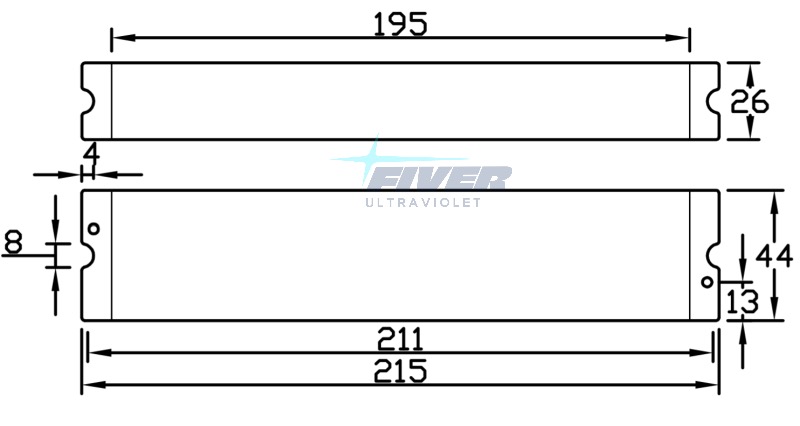

Dimension for the ballast water treatment uv
Size: 215*44*26mm. Carton Size: 460*270*190

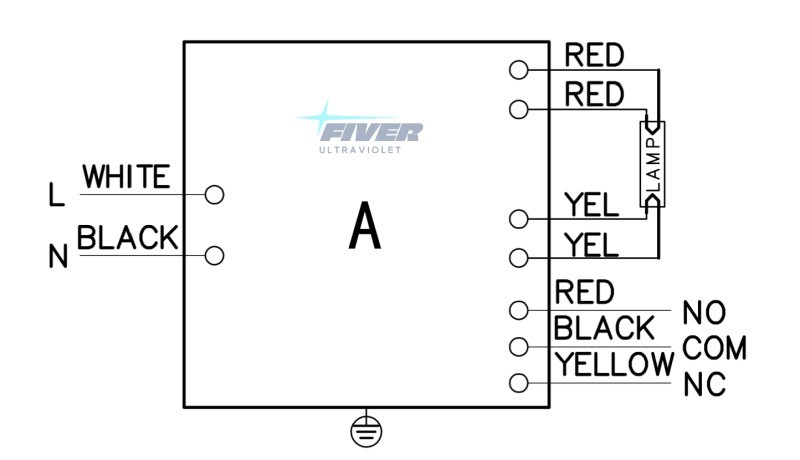

Wiring Diagram for this 100W UV light Ballast
Load lamps: GPH436T5HO GPH84CT5HO GPH893T5HO GH03CT5L TUV3CT5HO TUV55WHO TUV75WHO
Cautions:
1. Please make sure the power is off when you install or maintain the ballast
2. The distance between ballast and lamp tube should no longer than 5M.
3. The suggested wire specific: diameter 0.5-1mm, wire stripping 0.8-1mm
4. The aluminum shell should be grounded.
Why Choose uv lamp electronic ballast from Fiver?
Some Questions About Our Ultroviolet Ballasts You Might Concern.
Q1: What is the Warranty for Your uv lamp electronic ballast ?
A1: Our warranty for electronic uv ballast is 12,000 Hours or 2 to 5 years depending on the models.
Q2: Can I get samples before place orders?
A2: Yes, we offer samples for our customers to test before bulk orders, the sample charge will be refunded once you place an order.
that means you are getting a free sample.
Q3: How you ship the order to our Country?
A3: For sample or small orders, express will be best shipping method, such as DHL, TNT, FEDEX.
For bulk orders (more than 100kg), you can choose air freight, sea cargo or by Railway.
Q4: How to pay?
A4: 1. For sample/small orders 100%TT in advance. or by Paypal or Western Union
