230V 500W UV Water Sterilizer Ballast with DIP Switch

High Power Factor: >98%
Preheat start suitable for frequent starting.
Indicator function: with dry contact, which can be connected to remote control system to indicate the working status of the lamps.
5V DC output, connect to LED indicator output 5V DC when working normally,
output 0V the lamp is failed.
Output current can be adjustable via dip switch.

Loaded Lamps:
GPHMVA843T10, GPHMVA1000T10, GPHMVA1200T10, GPHHA1554T10L
GPHSVA843T10, GPHSVA1000T10, GPHSVA1200T10, GPHSVA1554T10
TU

INQUIRY

Product Details

Product Tags

230V 500W UV Water Sterilizer Ballast with DIP Switch

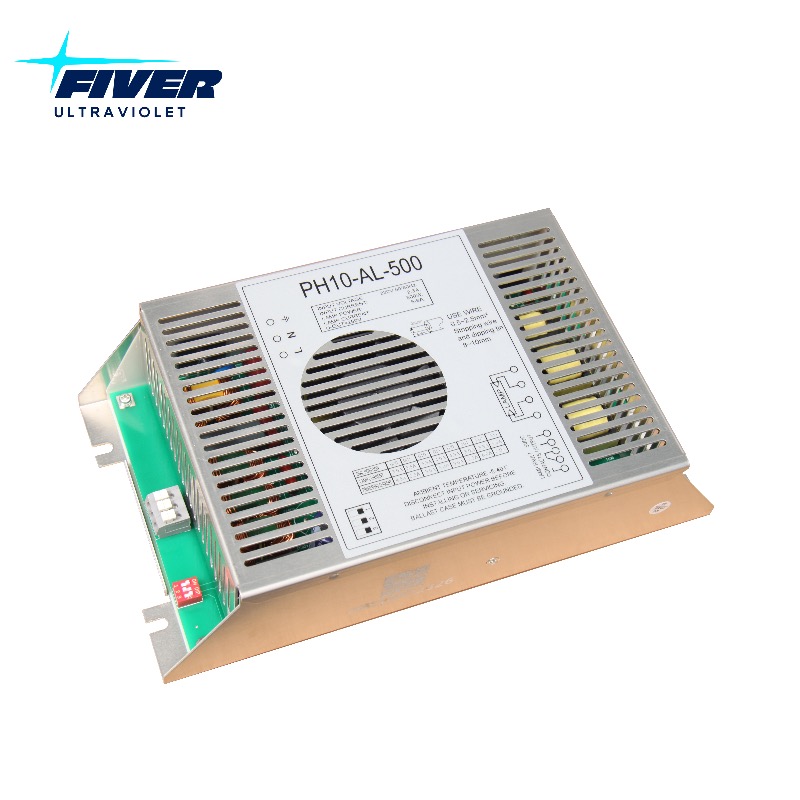

230V 500W UV Water Sterilizer Ballast with DIP Switch PH10-AL-500 .jpg

Product Parameters for this 500W UV Water Sterilizer Ballast

Start Mode	Preheat Start
Operating Voltage Range	198-264
Max Input Power	523W
Max Input Current	2.32A @ 230V
Lamp Power	500W Amalgam UV Lamp
Lamp Current	3.2-6.0A( Adjustable via DIP Switch)
Pre heat Current	3.5-6.5A( Adjustable via DIP Switch)
Pre heat Time	12-24A ( Adjustable via DIP Switch)
Operating Frequency	40-70KHZ
Power Factor	≥ 0.98
Efficiency	>90%
Total Harmonic Distortion	<15%
Crest Factor	<1.7
Ambient Humidity	5%-85%
Ambient Temperature	-15-40℃
Max Case Temperature	70℃
Case Material	Aluminum Shell
Safety Norm	EN61347-1-2-3, EN62493
LVD Norm	Low voltage Directive 2014/35/EU
EMC Norm	EN55015, EN55014, GB17743, GB17625, EN61000-3-2
Certificates	CE/UL/CCC

Product Features for UV Inverter Ballast

1> Compatibility, this uv water sterilizer ballast is is designed to work specifically with amalgam UV lamps, ensuring optimal performance and longevity.

2> High voltage output: This uv light bulb ballast provides the necessary high voltage output to ignite and sustain the operation of the amalgam UV lamps.

3> Energy efficiency: Amalgam UV lamp ballasts are designed to be energy-efficient, minimizing power consumption while still providing sufficient voltage for the lamp's operation.

4> Thermal management: The high power uv lamp ballast is incorporate thermal management features such as heat sinks or cooling fans to ensure proper cooling and prevent overheating during operation.

5> Protective mechanisms: These high power uv ballast with all-round protective mechanisms such as short-circuit protection, overcurrent protection, or overload protection to ensure safe and reliable operation of the system.

6> Compact design: Amalgam UV lamp ballasts are typically compact in size, making them suitable for various installation scenarios where space is limited.

7> Longevity and reliability: These ballasts are built with durable components and designed for long-term use in demanding environments, ensuring reliability and extended lifespan of both the ballast itself and the connected amalgam UV lamp.

Dimension for This Amalgam Lamp Ballast

Dimension for Amalgam UV Lamp Ballast PH10-AL-500
