GPHA843T5L 105W High Power Amalgam UV Lamp for Water Treatment

1> Fiver's UV lamps are CE & RoHS certificated.
2> Over 30 years experience in UV lamp manufacturing.
3> Strictly adhere to the requirements of the ISO 9001 quality management system
4> Each lamp undergoes rigorous testing at the factory to guarantee a 100% pass rate.
5> 1 year warranty, lamp life up to 15000 hours.
6> Sample orders are available for your evaluation.
7> Fast delivery, sample orders within 7 days, bulk orders within 30 days.
8> OEM & ODM service available.

Product Details

Product Tags

Wholesale GPHA843T5L 105W High Power Amalgam UV Lamp for Water Treatment Competitive Price

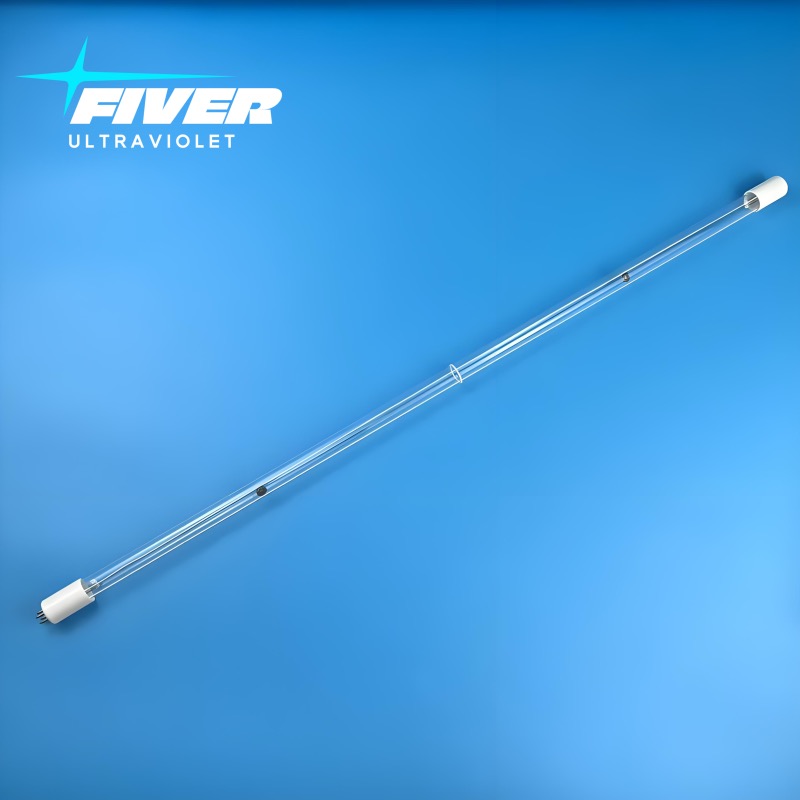

GPHA843T5L 105W Amalgam UV Lamp.jpg


What is an Amalgam UV Lamp?

An amalgam UV lamp is a specialized type of ultraviolet lamp that utilizes mercury alloy (amalgam) as its primary light-emitting material. This advanced design represents a significant evolution from traditional mercury UV lamps, offering enhanced performance characteristics that make it suitable for a wide range of applications requiring high-intensity UV radiation. Most amalgam UV lamps primarily emit light at 254nm, which falls within the UVC range (200-280nm) known for its germicidal properties. This wavelength is highly effective at breaking down the DNA of microorganisms, making it ideal for disinfection applications. Some specialized amalgam UV lamps can emit dual wavelengths, including 185nm, which can generate ozone and further enhance their disinfection capabilities.


How Does It Work?

The amalgam UV lamp operates by containing mercury alloy within a quartz tube. When electrical current is applied, the mercury alloy undergoes vaporization, producing UV radiation. The specific composition of the amalgam, which typically includes mercury combined with other metals or metalloids, influences both the wavelength and intensity of the emitted UV light. This process is highly efficient at converting electrical energy into UV radiation, particularly in the germicidal range.

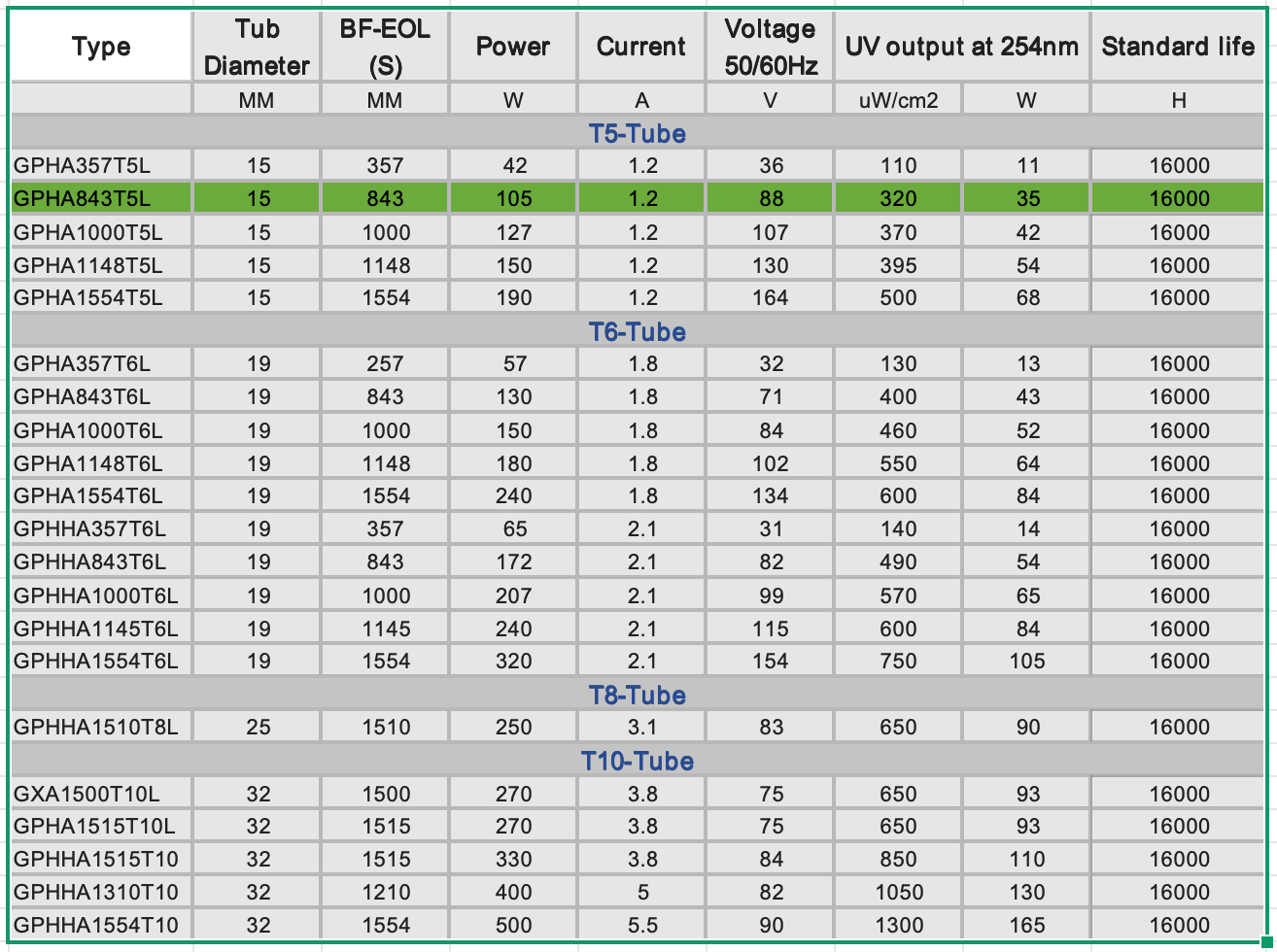

Product Parameters for Fiver's 105W T5 1.2A Amalgam Lamps:


Fiver Amalgam UV Lamps Specifications.jpg

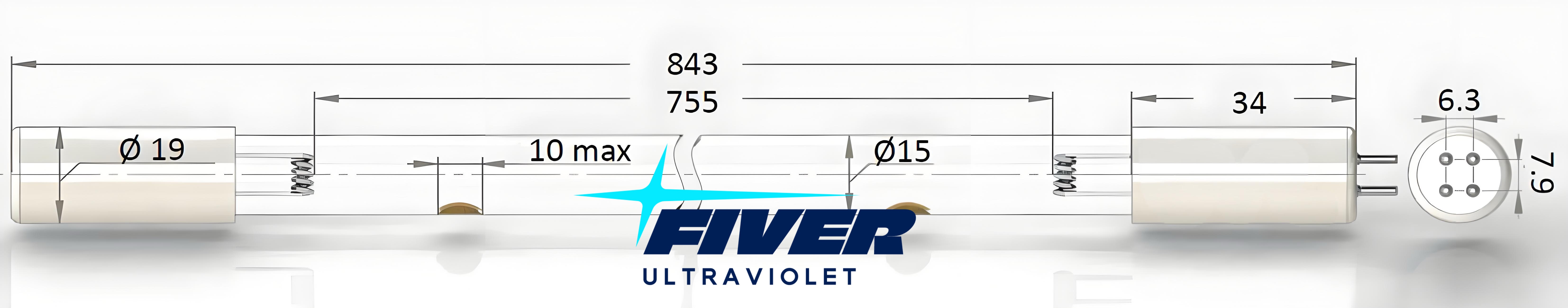

Product Parameters for the GPHA843T5L Germicidal UV Lamp

GPHA843T5L amalgam uv lamp parameters.jpg



Product Features of Amalgam UV Lamps:


  • High UVC Output: Amalgam UV lamps can produce up to three times the UVC output of a standard lamp of the same length without sacrificing efficiency or lamp life .

  • Long Lifespan: These lamps have an operating life of up to 16,000 hours while maintaining an end-of-life UVC output of 85% .

  • Temperature Adaptability: They have high adaptability to temperature, making them suitable for use in various environmental conditions.

  • Efficiency: Amalgam UV lamps are more efficient than standard germicidal lamps, allowing system designers to decrease the number of lamps needed without diminishing performance



Applications of the Amalgam UV Lamps:


  • Water treatment: Used in municipal water treatment, industrial water treatment, and water injection for oilfields .
  • Air purification: Effective in removing airborne pathogens and pollutants.
  • Medical sterilization: Used in healthcare settings for disinfecting surfaces and equipment.
  • Food processing: Helps in maintaining hygiene and reducing the risk of foodborne illnesses.

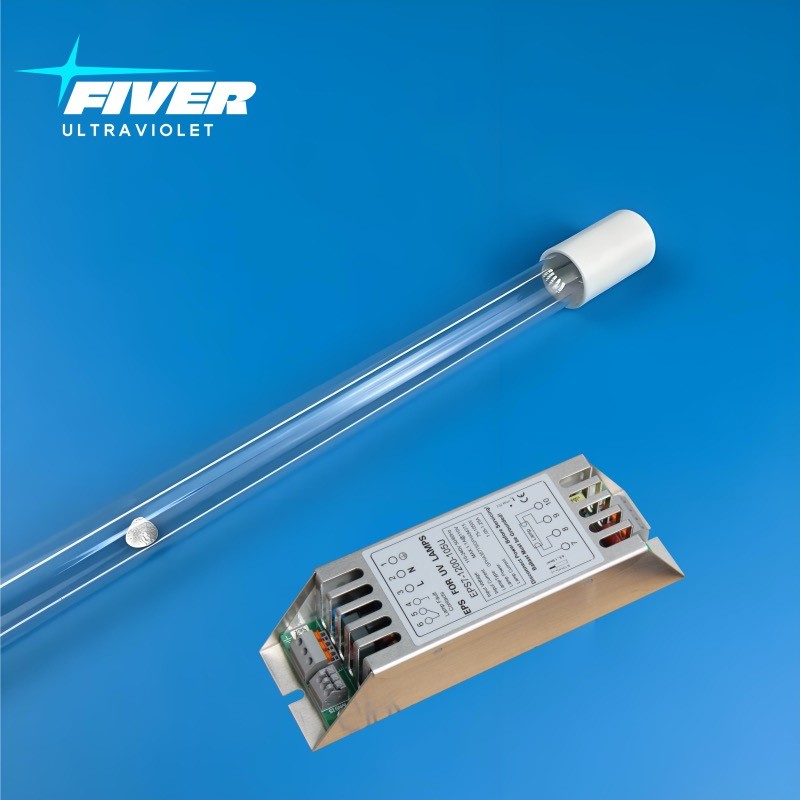

Need a Amalgam UV ballast to match this 105W GPHA843T5L amalgam lamp? please refers to this link: https://www.fiveruvc.com/110230V-105W-12A-Electronic-Ballast-for-Amalgam-UV-Lamps-p.html
