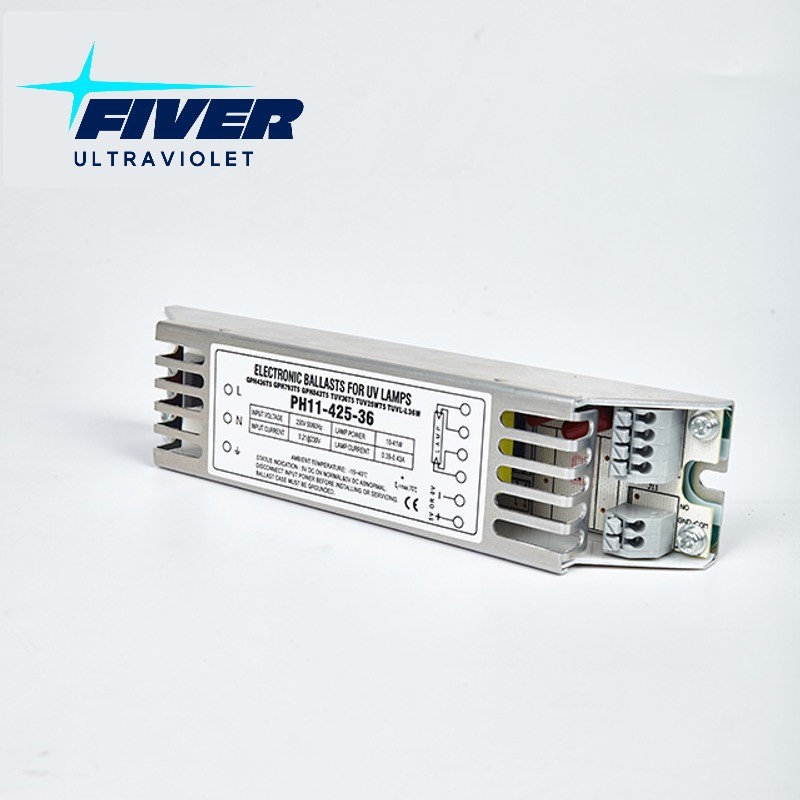

99-264V Input 36W 425mA UV Light Ballast Replacement
99-264V Wide Input Range 36W 425mA UV Light Ballast Replacement for T5 UV Lamps GPH843T5
Product Parameters for 36w uv ballast
Operating Voltage Range | 99-264 |
Max Input Power | 45W |
Max Input Current | 0.2A @ 230V 0.38@120V |
Lamp Power | 10-36W |
Lamp Current | 0.38-0.43A |
Operating Frequency | 50-70KHZ |
Preheat Time | 1.0-2.0 S |
Preheat Current | 0.4-0.5A |
Power Factor | ≥ 0.98 |
Efficiency | >90% |
Total Harmonic Distortion | <15% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
LVD Norm | Low voltage Directive 2014/35/EU |
EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
Certificates | CE/UL/CCC |
Advantages of Standard Output Electronic UV Lamp Ballast:
A standard output UV ballast is an electronic device that regulates the voltage and current of a UV-C lamp, allowing it to run standard output UV germicidal light bulbs. Standard output UV bulbs are cheaper than high output bulbs but have a lower UV output wattage. Standard UV output lamps typically operate at less than 425 mA.
A UV bulb ballast converts a sinusoidal AC input of around 50-60 Hz into a 20-80 kHz square or sine wave pulse output, eliminating flicker. The ballast converts the input voltage to the 400–1,000 volts required to spark the lamp because UV-C lamps need a high voltage applied between the electrodes to spark.
Standard output fixtures can be installed in ducts, supply, return, or exhaust plenums to disinfect moving air streams and surfaces. They can be connected end-to-end using PnP connections for fast and reliable installations of any length and number of rows
The advantages of standard output uv ballsts as following:
1> Widely adopted. The standard output uv ballast are desiged to run the standard output uvc germicidal bulbs.Many of the most common
2> Cost effective. standard output uv bulbs and ballasts are less expensive compared to high output uv lamps and ballasts.
Compatible Lamp Types
This wide input 99-264Vac 36w uv ballast is designed to run following low pressure uv lamps: GPH843T5, GPH793T5, GPH550T5, GPH436T5, G36T5, TUV36T5,TUVPL-36W, TUV36W
Dimension of this 36w uv bulb ballast
Size: 165*38*30mm Carton Size: 460*270*190mm(70PCS Load)
Mounting hole spacing: 157mm
Wiring Diagram:
Cautions:
1. Please make sure the power is off when you install or maintain the ballast
2. The distance between ballast and lamp tube should no longer than 5M.
3. The suggested wire specific: diameter 0.5-1mm, wire stripping 0.8-1mm
4. The aluminum shell should be grounded.
