2X320W Electronic UV Power Supply to Replace Trojan UV3000 Plus

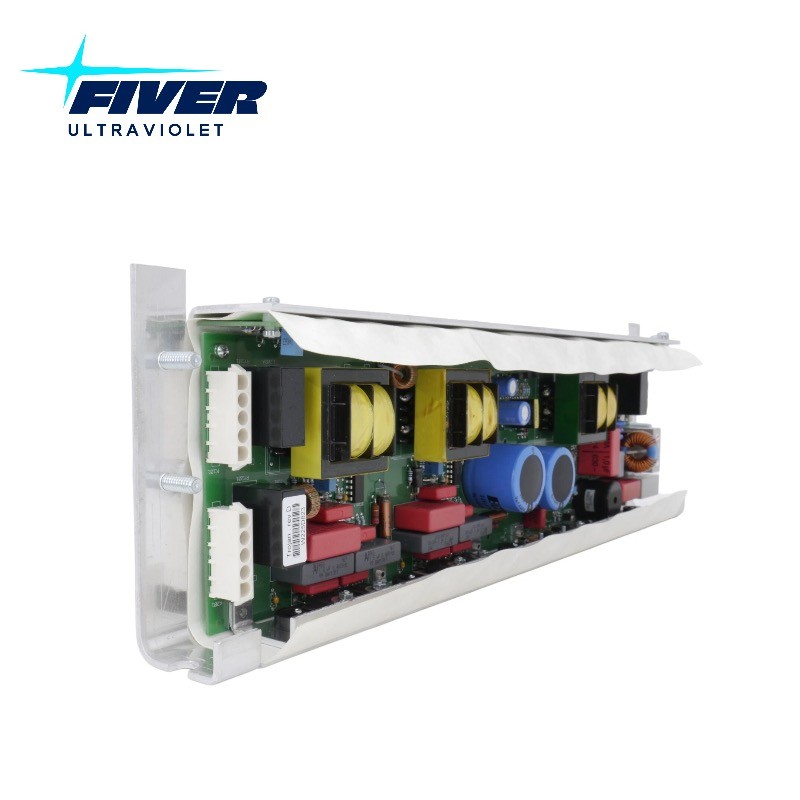

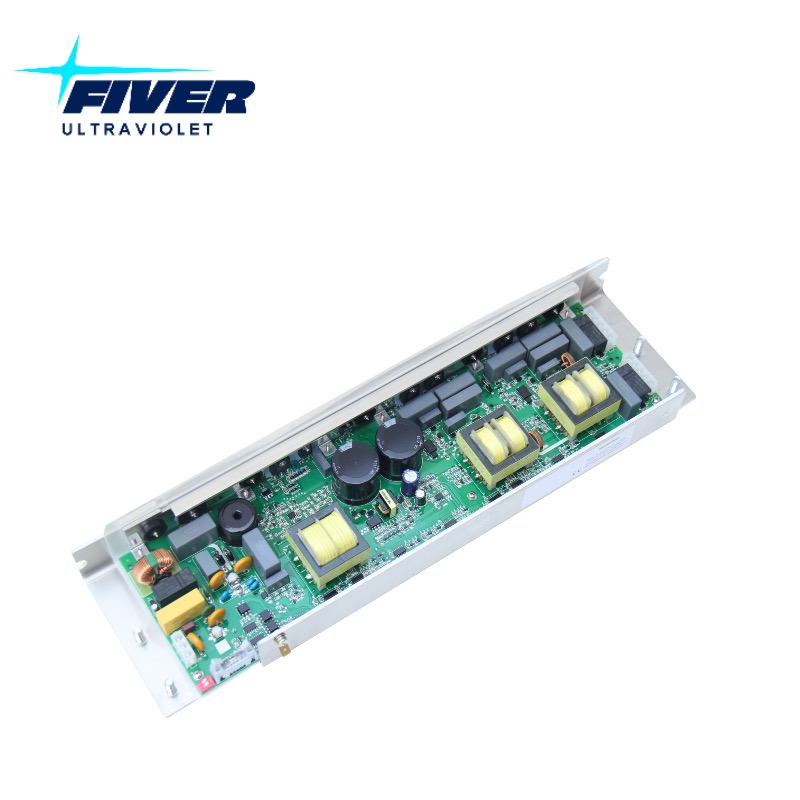

2X320W Electronic UV Power Supply - High-Performance Replacement for Trojan UV3000 Plus
Upgrade Your Water Treatment Performance Without System Overhaul
Tired of costly OEM replacements for aging Trojan UV3000 Plus lamp drivers? Our 2*320W Electronic UV Power Supply delivers a high-performance, plug-and-play replacement engineered for municipal and industrial water treatment systems. Designed as a direct Trojan UV3000 Plus replacement, this robust 640W germicidal UV ballast boosts disinfection reliability while cutting operational costs.
Product Features of Fiver's 2*320W UV ballast Trojan UV3000 Plus Replacement
Why This 2*320W Ballast is Your Ideal Trojan UV3000 Plus Replacement:
✅ Seamless Compatibility
Drop-in replacement for Trojan UV3000 Plus drivers – integrates instantly with existing modules (4-8 lamps) without wiring changes or system downtime. Maintains full SCADA monitoring capabilities.
✅ Superior 640W Germicidal Output
Doubles down on performance with 640W total power (2x 320W channels) for stronger UV dose delivery, ensuring consistent microbial inactivation in wastewater and drinking water applications.
✅ Engineered for High-Efficiency Amalgam Lamps
Optimized as an amalgam UV lamp ballast, supporting variable power output (60-100%) to maximize lamp life and efficiency.
✅ 95% Energy Efficiency
Advanced electronics reduce energy consumption by 30% vs. legacy systems. Convection cooling eliminates noisy fans – ideal for enclosed spaces.
Product Parameters for Fiver's 2*320W Amalgam UV Lamp Ballast
| Start Mode | Preheat Start |
Operating Voltage Range | 198-264 |
Max Input Power | 692W |
Max Input Current | 3.07A @ 230V |
Lamp Power | 2*320W Amalgam UV Lamp |
Lamp Current | 2.1A |
Operating Frequency | 40-70KHZ |
Power Factor | ≥ 0.98 |
Efficiency | >95% |
Total Harmonic Distortion | <10% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
Applications of Fiver's 2*320W Germicidal UV Ballast
Municipal Wastewater Treatment Retrofits
Drinking Water Disinfection Systems
Industrial Process Water Upgrades
Cost-Effective Trojan UV3000 Plus Replacement
