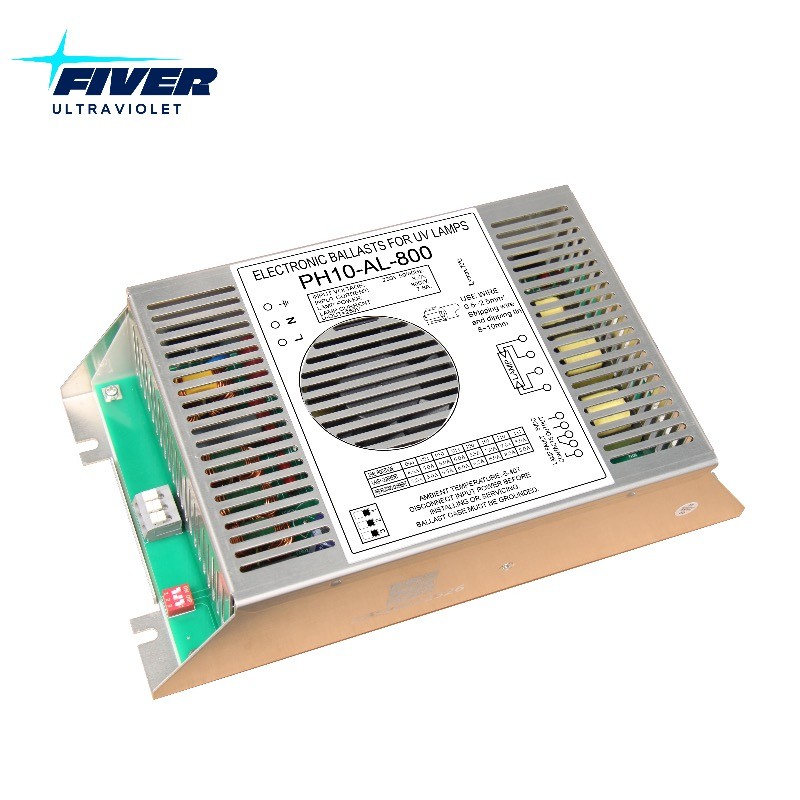

230V 800W UV Lamp Driver Electronic UV Transformer
230V 800W UV Lamp Driver Electronic UV Transformer
Product Specifications for 800W UV Lamp Transformer
| Start Mode | Preheat Start |
Operating Voltage Range | 198-264 |
Max Input Power | 834W |
Max Input Current | 3.7A @ 230V |
Lamp Power | 800W Amalgam UV Lamp |
Lamp Current | 7-9A( Adjustable via DIP Switch) |
| Pre heat Current | 6.0-9.0A( Adjustable via DIP Switch) |
| Pre heat Time | 12-24S ( Adjustable via DIP Switch) |
Operating Frequency | 40-70KHZ |
Power Factor | ≥ 0.98 |
Efficiency | >90% |
Total Harmonic Distortion | <15% |
Crest Factor | <1.7 |
Ambient Humidity | 5%-85% |
Ambient Temperature | -15-40℃ |
Max Case Temperature | 70℃ |
Case Material | Aluminum Shell |
Safety Norm | EN61347-1-2-3, EN62493 |
LVD Norm | Low voltage Directive 2014/35/EU |
EMC Norm | EN55015, EN55014, GB17743, GB17625, EN61000-3-2 |
Certificates | CE/UL/CCC |
Product Features for 800W uv lamp ballast
1. This 800W uv-c lamp ballast preheat start, suitable for applications need frequent on and off.
2. This uv ballast longevity, with a life span up to 50000 swtiching cycles. long warranty.
3. This uv lamp transformer with DIP switch, output current, preheat current and preheat time switchable.
4. This electronic uv lamp driver high energy efficiency up to 90%.
5. This uv ballast with all-round protective mechanisms such as short-circuit protection, overcurrent protection, or overload protection to ensure safe and reliable operation of the system.
Dimensions for UV-C Lamp Ballast
Diagram for this UV Ballast Longevity
Loading Lamps: GPHVA1520T10, GPHHA1790T12L, GHVA1790T12L
Cautions:
1. Please make sure the power is off when you install or maintain the ballast
2. The distance between ballast and lamp tube should no longer than 5M.
3. The suggested wire specific: diameter 0.5-1mm, wire stripping 0.8-1mm
4. The aluminum shell should be grounded.
