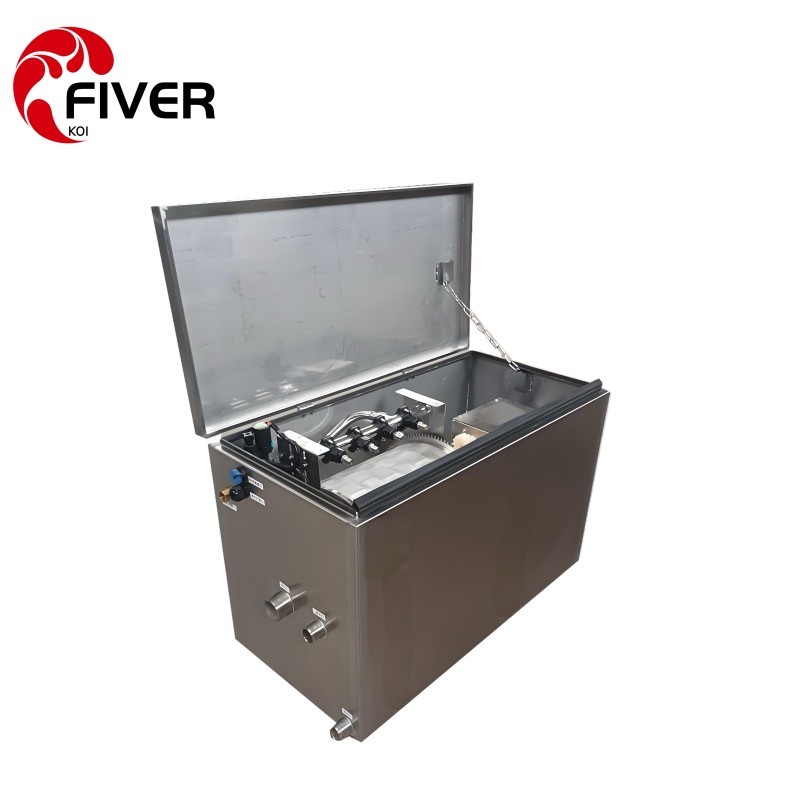

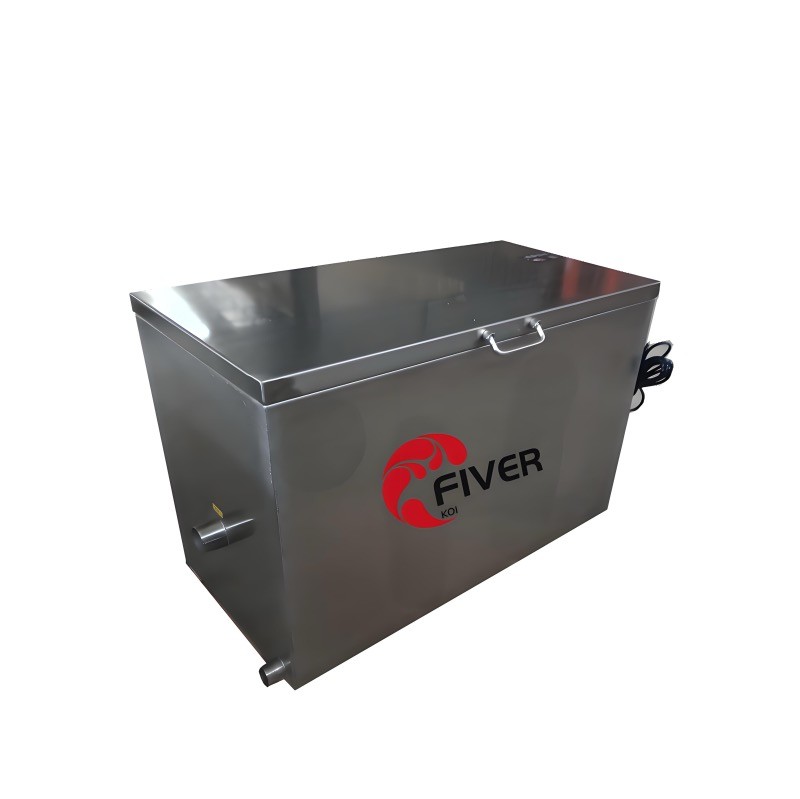

China Corrosion Resistance Drum Filter 70T/H Drum Filter for RAS

China Corrosion Resistance Drum Filter 70T/H Drum Filter for RAS
Model: FR-DF-X200
Flow Rate: 70T/H （18480GPH)
Size: 1500x600x720mm
Drum Size: 550mm(Diameter)*1000mm(Length)
Housing Material: 304 Stainless Steel
Filtration Screen Material: 316 Stainless Steel
Screen Aperture: 100/75um
Inlet Size: DN200-200mm(Gravity-fed); DN65-70mm(Pump-fed)
Outlet Size: DN65-70mm( Gravity-fed); DN65*3- 70mm*3/ 106(Pump-fed)
Sewage Outlet: DE50/DN40-40mm
Suitable Water: 50-100m³
Feed Pump: Variable Frequency Pump: 300W
UV Lamps: 40W*12PCS

Product Details

Product Tags

China Corrosion Resistance Drum Filter 70T/H Drum Filter for RAS

China Corrosion Resistance Drum Filter 70T/H Drum Filter for RAS.jpg

Product Features for Fiver's Box-Type Drum Filter with UV Sterilizer:

1. Durable and Corrosion Resistance:  This rchina corrosion resistance drum filter from Fiverkoi's X-series, represent powerful, sophisticated filtration equipment designed with the latest technology. These drum filters are made with heavy-duty construction and reinforced material manufactured entirely of robust 304 stainless steel. make it solid, durable and corrosion resistance, means that it can adapt to all kinds of harsh environments.

2. High Filtration Efficiency, Easy Maintenace: Our stainless steel drum filter adpots 200 mesh filtration panels have been specifically engineered to offer maximum microscreen filter efficiencys. Screwed joint, piecewise module design make it esy to maintain, once the filter mesh is damaged you just need to exchange the damaged mesh piece easily, instead of replacing the whole drum unit.

3. Maintenance Free Gear Wheel Drive System: Fiver's drum filter for ras,uses 316L driven gear wheels which require zero lubrication maintenance to provide reliable, smooth, energy efficient operation. No more oil baths, rusty chains, or chains that can break! to assure you a longlast and maintenace free operation.

4. Large Filtration Drum Size, Nominal Flow Rate is Actual Flow Rate: Unlike many suppliers deliberately overstate the flow rate of their products to deceive consumers. Our water drum filter' rated flow rate is the actual flow rate.

5. Automatic Backwash, Inteligent Control.  The automatic backwash process controlled by timer and water level switch integrated in the filter. to acheive atuomatic flushing automatic discharge, automatic anti-block detection.

Product Specifics for Fiverkoi's Drum Filter for RAS

Product Specifics for Fiverkoi's Drum Filter for RAS.png


Benefits of Adopting Rotary Drum Filter in A RAS Aquaculture System:

A rotary drum filter is a crucial component in a Recirculating Aquaculture System (RAS), significantly enhancing water quality and overall system efficiency. Here are the key benefits of incorporating this technology:

Improved Water Quality

  • Efficient Solid Removal: Effectively removes suspended solids, including fish waste, uneaten food, and other debris, preventing water contamination.

  • Reduced Pathogen Load: By removing potential pathogen carriers, drum filters help maintain a healthy environment for aquatic organisms.

  • Enhanced Water Clarity: Contributes to a visually appealing and hygienic aquaculture environment.

Optimized System Performance

  • Increased Filtration Capacity: Handles large volumes of water, ensuring continuous and efficient filtration.

  • Reduced Biofilter Load: By removing solids upfront, drum filters lighten the load on biological filters, improving their efficiency.

  • Energy Efficiency: Modern drum filters often incorporate energy-saving features, reducing operational costs.

Operational Efficiency

  • Continuous Operation: Offers uninterrupted filtration, maintaining consistent water quality.

  • Automated Backwashing: Many drum filters feature automated backwashing systems, minimizing labor requirements.

  • Reduced Maintenance: Proper design and construction minimize downtime and maintenance needs.
