30T/H Aquarium Drum Filter with Bio Chamber for Water Treatment

Model: FR-DF-D120G
Flow Rate: 20-30T/H  (5280-7920GPH)
Size: 1200*600*720
Drum Size: 550mm(Diameter)*400mm(Height)
Chamber Material: 304 Stainless Steel
Filtration Screen Material: 316 Stainless Steel
Screen Aperture: 150/100/75um
Inlet Size: DN100 -106mm
Outlet Size: DN40-40mm
Sewage Outlet: DE50/DN40-40mm
Suitable Water: 20-30m³
Feed Pump: Variable Frequency Pump: 140W 16T/H
Tap Water Flushing (Pump Flush Optional)
UV Lamps: 40W*3

Product Details

Product Tags

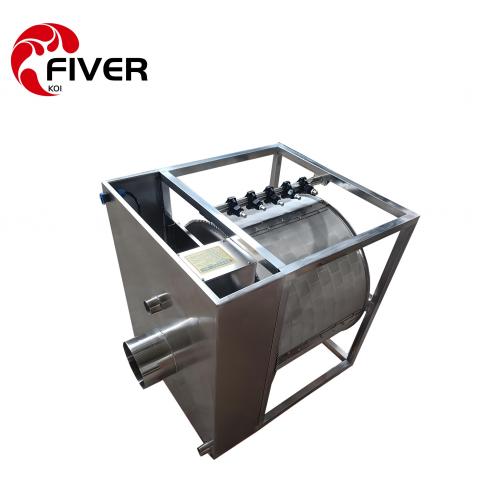

30T/H Aquarium Drum Filter with Bio Chamber for Water Treatment

30T/H Aquarium Drum Filter with Bio Filter for Water Treatment.jpg


Technical Specifications for Fiver's Gravity Fed Drum Filters.

Product Technical Specifications for Fiver's Gravity Fed Drum Filters.png

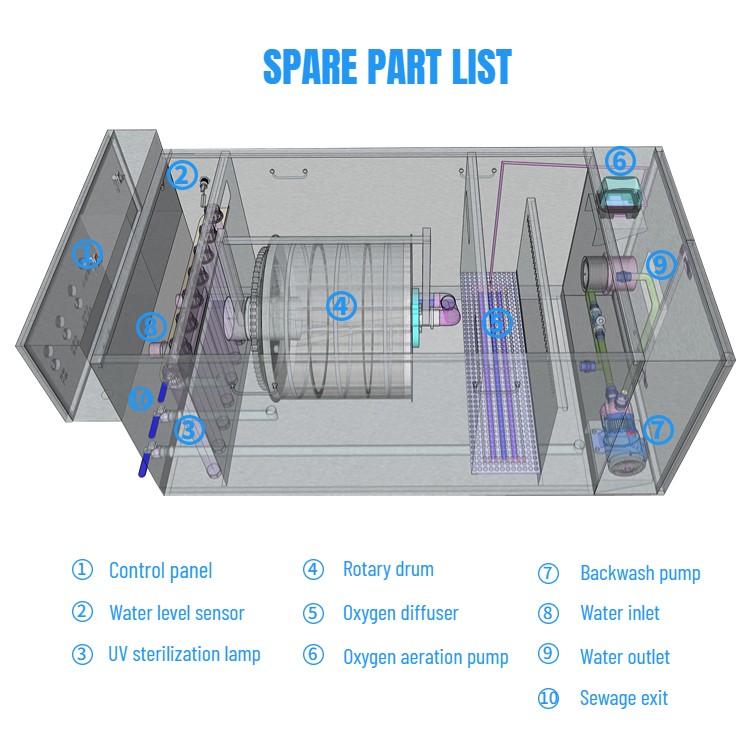

The Drum Filter Diagram for Fiverkoi's 30T/H Gravity-Fed Stainless Steel Drum Filter.

Gravity-fed drum filter diagram.jpg

How the Drum Filter with Bio Chamber and UV Lamps benefits public Aquariums?

How the Drum Filter with Bio Chamber and UV Lamps benefits public Aquariums?.jpg

Aquarium drum filters with bio chambers and UV lamps offer a powerful combination of benefits for public aquariums, contributing to a healthier environment for aquatic life and a more efficient maintenance process. Here's a breakdown of how each element contributes:

Drum Filter:

  • Superior Mechanical Filtration:  Public aquariums house a diverse range of aquatic life, generating a significant amount of waste. Drum filters excel at removing large and fine waste particles like uneaten food, fish waste, and debris. This reduces the burden on downstream filtration stages and helps maintain pristine water quality.

  • Reduced Biofiltration Load:  By removing a significant portion of solid waste, drum filters lessen the load on biological filters. This allows these filters to function more efficiently in breaking down ammonia and other waste products, maintaining a healthy balance for the sensitive ecosystems within the tanks.

Bio Chamber:

  • Enhanced Biological Filtration:  The bio chamber within the system provides a dedicated space for the growth of beneficial bacteria. These bacteria convert harmful ammonia, a byproduct of fish waste, into nitrites and then nitrates.  A healthy bio chamber population ensures proper nitrogen cycle management, crucial for water quality.

  • Increased Efficiency:  By housing the bio media in a separate chamber, the drum filter's self-cleaning function doesn't disrupt the delicate bacterial colonies. This maximizes the efficiency of the biofiltration process.

UV Lamps:

  • Pathogen Control:  Public aquariums often showcase a variety of species from different environments. UV lamps emit ultraviolet light that disrupts the DNA of pathogens like bacteria, viruses, and parasites. This helps control the spread of disease within the tanks, protecting the health of aquatic life.

  • Improved Water Clarity:  UV lamps can also contribute to clearer water by inactivating some microorganisms that can cause cloudiness. This enhances the visual appeal of the exhibits for visitors.

Combined Benefits:

  • Comprehensive Water Treatment:  The combination of drum filtration, biofiltration, and UV disinfection provides a multi-pronged approach to water treatment in public aquariums. This ensures the removal of solid waste, biological waste breakdown, and pathogen control, creating a healthier environment for the animals.

  • Reduced Maintenance:  The self-cleaning nature of drum filters and the improved efficiency of biofiltration due to the dedicated chamber contribute to reduced maintenance needs.  Less time spent cleaning translates to more time dedicated to animal care and exhibit management.

Overall, a drum filter with bio chamber and UV lamps offers a powerful and efficient solution for maintaining pristine water quality and promoting the health of aquatic life in public aquariums.
