220V input 1KW Medium Pressure UV Sterilizer for Swimming Pool Water Treatment

1. Excellent Electronic Components: Siemens PLC Unit and Schneider Switches.
2. Long Life Span UV tubes: Heraeus UV lamp, life span up to 6000 hours
3. Durable and Corrosion Resistance: 3mm thick SS 316 chamber, lifetime warranty
4. Automatic Cleaning: Quartz sleeve adopts automatic electric cleaning.
5. Over-temperature detection: Avoid over-temperature for uv lamps.
6. UV Density detector: Integrated uv sensor, real time indicates the uv density.
7.  Easy Installation: Our uv sterilizer

Product Details

Product Tags

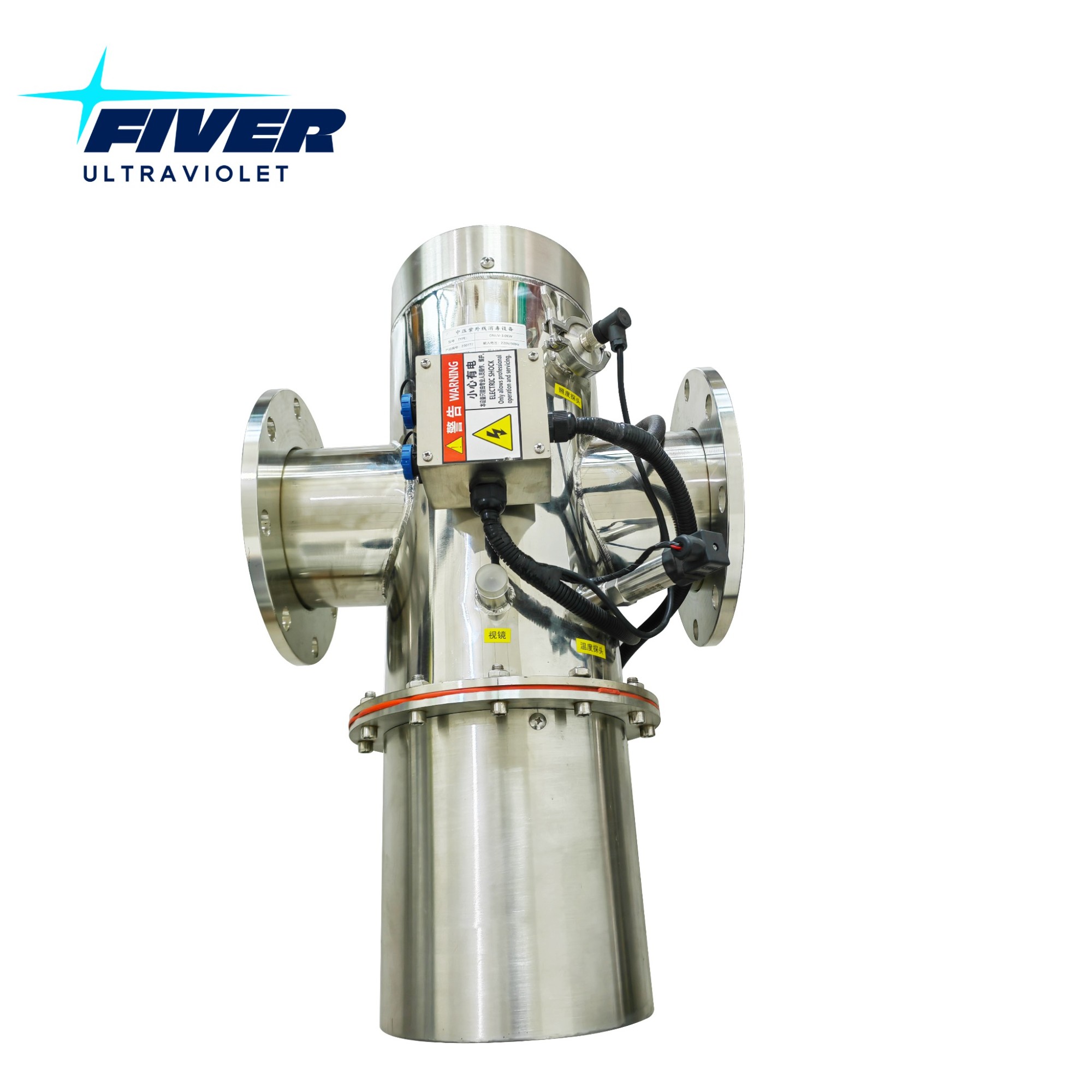

220V input 1KW Medium Pressure UV Sterilizer for Swimming Pool Water Treatment

220V input 1KW Medium Pressure UV Sterilizer for Swimming Pool Water Treatment.jpg

Product Specifications for Fiverultravoilet Medium Pressure UV Water Sterilizers:

Specifications for Fiverultravoilet Medium Pressure UV Water Sterilizers.png


Product Features for Our 1KW Pool UV System:

uv water sterilizer pool.jpg

1. 316SS Chamber Characters:

Robust Constructure, Durable Dsign: The Chamber of the UV Sterilizer is made of 3mm thick 316 Stainless steel. can withstand high water pressure, and 316L material 316SS exhibits superior resistance to chlorine and saltwater, which are prevalent in pool environments. This ensures the longevity of the sterilizer and prevents performance degradation.

Long Lifespan: This robust material contributes to the extended lifespan of the UV lamp sanitizer, reducing maintenance and replacement costs.

Hygienic Properties: The smooth and non-porous inner surface of 316SS Chamber prevents the buildup of bacteria, algae, and other contaminants, maintaining a hygienic environment within the sterilizer. and it's easy to clean.





Medium Pressure UV System for Swimming Pool.jpg2. Excellent Quality Electronic Components

Our Medium Pressure UV Sterilizer system, use Siemens PLC control unit to monitor and control.

Real-time Monitoring and Accurrate Control: the PLC system can continuously monotr key parameters such as uv density, flow rate, pressure and  lamp temperature. it can also precisely regulate the UV dose delivered to the water, ensuring consistent disinfection efficiency.

Highly Automation and Excellent Efficiency: the PLC System can automate many process such as uv lamp ignition and shutdown; UV lamp quartz sleeve automatic cleaning.... reduce manual operation. what's more by controlling the uv density radiation base on water quality and flow rate, the energy consumption can be optimized.

Data logging and Analysis: the PLC system can record operational data such as uv intensity, water flow rate lamp hours... this data can be used for improve operation, and shedule maintenance.

Remote Monitor and Control: The PLC System can be integrated with remote monitoring system, allow the operators to get the uv system data and control it romotely.

Alarm and Safety Functions: The PLC system will send alarm for abnormal conditions, such as low uv intensity, high pressure, high temperature or uv sterilizer failure. once these error happens the PLC system can send instructions for emergency shutdown to protect the equipment.


UV Lamps for Water Disinfection.jpg

3. Powerful Longivity Medium Pressure UV Lamps

Long Service Life: we adopte Heraus Medium Pressure UV lamps for our ultraviolent lamp sanitizer system. the service life up to 6000 hours.

High UV Intensity: This 1KW uv lamp feature a broad, pronounced line spectrum in the ultraviolet and visible range (200 nm to 600 nm) and a high power density of about 100 W/cm². suitable for UV disinfection,  it can inavtivate microorganisms, including resistant pathogens like Cryptosporidium and Giardia. what's more it contribute to the degradation of organic matter and the reduction of certain chemicals in the water.

Higher Flow Rate: Due to their higher energy output, medium pressure uv lamps can treat larger volumes of water in a shorter time, making them suitable for high-flow applications. especially like swimming pools.

Automatic quartz sleeve cleaning.jpg

4. Automatic Quartz Sleeve Cleaning:

The quartz sleeve is a critical component of a UV sterilizer, protecting the lamp and allowing UV light to pass through for disinfection. Combined with the PLC system and a electric cleaning motor, our medium pressure UV sterilizers can acheive timed automatic cleaning. regular cleaning of the sleeve prevents the scale and biofilm buildup, to assure the transmission of uv light for effective uv disinfection. this cleaning process is fully automatic save labor cost and can extend the working life of the uv lamps.


Pool UV System.jpg



     5. Aviation Plug Connection

For our Ultraviolent Lamp Sanitizer The connection between the uv water sterilizer and the control cabinet use aviation plugs, make the installation plug and play.






Working Principle of UV Water Sterilizer:


The uv water sterilizer/ultraviolet disinfection system mainly uses the radiant energy of ultraviolet light to destroy the nucleic acid structure of microorganisms, so as to achieve the purpose of killing bacteria, viruses and other microorganisms.

 Ultraviolet light is divided into different bands. The ultraviolet-C (UVC) band has the strongest sterilization effect, with a wavelength range of 200-280 nanometers. When microorganisms are irradiated by UVC ultraviolet light, the energy of ultraviolet light is absorbed by the nucleic acid (DNA and RNA) of microorganisms. Molecules such as purine and pyrimidine in nucleic acid will absorb the energy of ultraviolet light, causing adjacent pyrimidine molecules to form dimers, such as thymine dimers. The formation of this dimer will hinder the replication and transcription of nucleic acid, making microorganisms unable to carry out normal life activities, thereby achieving the effect of killing microorganisms.

The uv sterilizer usually consists of ultraviolet lamp tubes, reactors and control systems. Water flows through the reactor and is irradiated by ultraviolet light emitted by ultraviolet lamp tubes to complete the disinfection process.


Advantages of  Medium Pressure UV Sterilizer in the Applicaiton of Swimming Pool Water Disinfection.


I. Highly Efficient Sterilization

 Medium pressure ultraviolet (UV) light can effectively kill a variety of bacteria, viruses and other microorganisms. Compared with traditional chemical disinfection methods, its sterilization effect is more rapid and thorough. It can comprehensively disinfect swimming pool water in a short time, reducing health risks caused by microbial growth.

II. No chemical residues

Using a medium pressure UV sterilizer does not produce by-products or chemical residues in the water like chemical disinfectants. This is very important for the health of swimmers, especially for those who are sensitive to chemicals. It can provide a purer and safer swimming environment.

III. Low maintenance cost

 Once a medium pressure pool UV system is installed, its maintenance cost is relatively low. Unlike chemical disinfectants that need to be added and monitored regularly, the medium pressure UV system mainly needs to regularly check the working status of the lamp tube and perform simple cleaning and maintenance.

IV. Environmentally friendly

Ultraviolent Lamp Sanitizer does not emit harmful substances into the environment and meets environmental protection requirements. It is a sustainable disinfection method that helps reduce the impact on the environment.

 V. Easy operation

The uv water sterilizer swimming pool usually has an automated operation function and can be automatically started and shut down according to the usage of the swimming pool, what's more the electric wiper for the quartz sleeve can clean the tube automaticlly, reduce maintaince. This makes it more convenient for swimming pool managers to manage water quality.

Therefore, the application of medium pressure UV sterilizers in swimming pools can provide an efficient, safe and environmentally friendly disinfection solution, creating a healthy and comfortable swimming environment for swimmers.



Applications For the Medium Pressure UV Water Sterilizers:

Applications For the Medium Pressure UV Water Sterilizers.jpg
